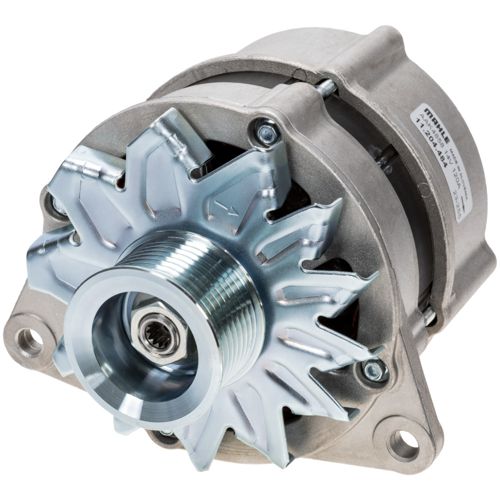

Alternator Mahle 120A 12V Cnh

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDSTL0012M

  ManufacturerMahle

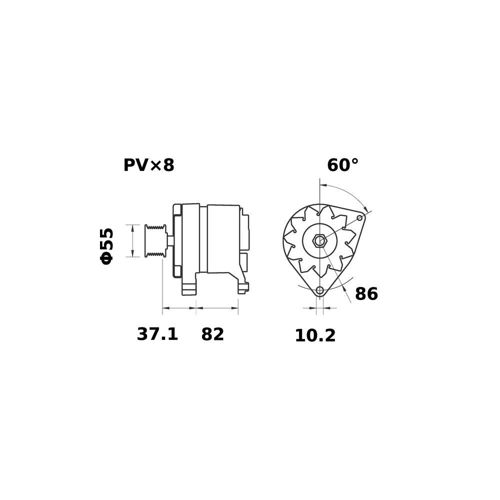

  Characteristics

  - 120 A
  - 14 V
  - pulley with 8 grooves Ø 55 mm
  - shaft 17 mm
  - mounting hole Ø 10.2 mm
  - distance between mounting holes 82 mm
  - W connector

  General descriptions of the generator pins:
  - B+,+ = charging current to the battery's + terminal
  - D-, B- = generator grounding to the battery's - terminal/chassis
  - IND, I, D+ = activation of generator via charge lamp
  - W = impulse pin for electric tachometer
  - S = sensor for battery temperature sensor (Ford)
  - AUX = extra connection for additional equipment
  - F = field in DC generators
• Suitable for models
• Case IH Farmall 105C
  Case IH Farmall 105U
  Case IH Farmall 105U Pro
  Case IH Farmall 110U
  Case IH Farmall 115C
  Case IH Farmall 115U
  Case IH Farmall 115U Pro
  Case IH Farmall 120U
  Case IH Farmall 65C
  Case IH Farmall 85C
  Case IH Farmall 95C
  Case IH Farmall 95U
  Case IH Farmall 95U Pro
  Case IH JX107OU
  Case IH JX108OU
  Case IH JX1090U
  Case IH JX1100U
  Case IH JX60
  Case IH JX70
  Case IH JX80
  Case IH JX90
  Case IH JX95
  Case IH JXU 105
  Case IH JXU 115
  Case IH JXU 75
  Case IH JXU 85
  Case IH JXU 95
  New Holland T4030
  New Holland T4040
  New Holland T4050
  New Holland T5.105
  New Holland T5.115
  New Holland T5.95
  New Holland T5030
  New Holland T5040
  New Holland T5050
  New Holland T5060
  New Holland T5070
  New Holland TD5.105
  New Holland TD5.115
  New Holland TD5.65
  New Holland TD5.75
  New Holland TD5.85
  New Holland TD5.95
  New Holland TL100A
  New Holland TL70A
  New Holland TL80A
  New Holland TL90A

• Product groups
• International-Case IH
  New Holland

• OEM part no.
• NH 48195715
  NH 87311822
  NH 47383500
