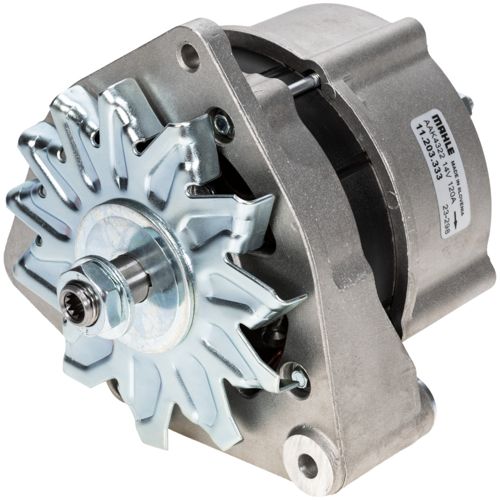

Alternator Mahle 120A 12V Case

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDSTL0032M

  ManufacturerMahle

  Characteristics

  - 120 A
  - 12 V
  - delivered without pulley
  - shaft 17 mm

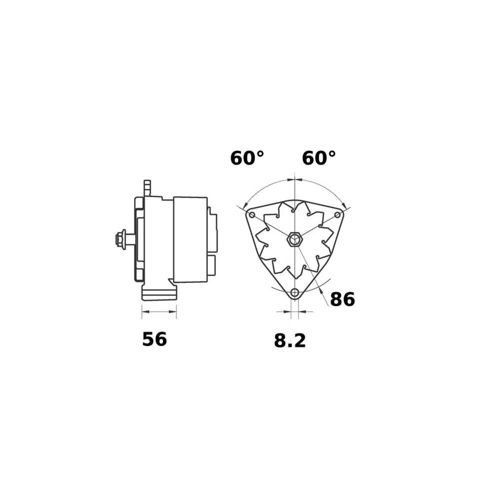

  - mounting hole Ø 8.2 mm
  - distance between mounting holes 56 mm
  - W connector

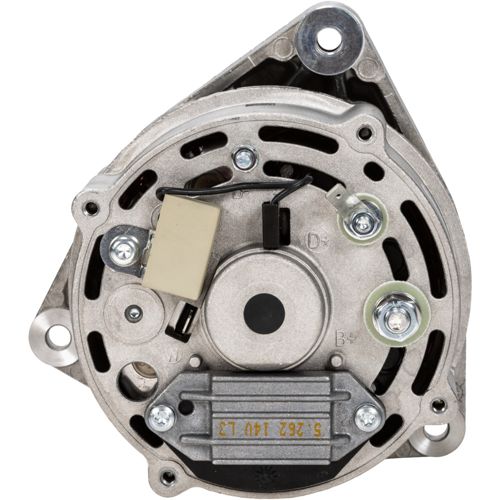

  General descriptions of the generator's terminals:
  - B+,+ = charging current to the battery's + terminal
  - D-, B- = generator ground to battery's - terminal/chassis
  - IND, I, D+ = activation of generator via charging lamp
  - W = pulse terminal for electronic tachometer
  - S = sensor for battery temperature sensor (Ford)
  - AUX = extra connection for additional equipment
  - F = field in DC generators
• Suitable for models
• Case IH 1046
  Case IH 1055
  Case IH 1056
  Case IH 1246
  Case IH 1255
  Case IH 1455
  Case IH 745
  Case IH 844
  Case IH 946
  Case IH 955
  Case IH 956
  Case IH CS110
  Case IH CS68
  Case IH CS75
  Case IH CS78
  Case IH CS86
  Case IH CS94
  Deutz-Fahr DX6.50
  Deutz-Fahr DX7.10

• Product groups
• Deutz - Fahr
  International-Case IH
