Alternator Mahle 55A 12V Fiat

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDST0169M

  ManufacturerMahle

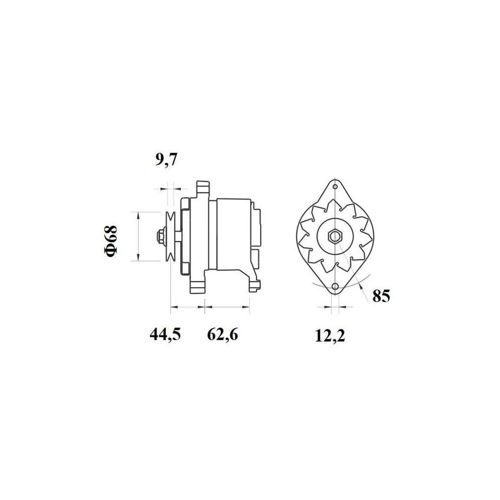

  Characteristics

  - 55 A
  - 14 V
  - pulley with 1 groove Ø 68 mm
  - shaft 17 mm
  - mounting hole Ø 12.2 mm
  - distance between mounting holes 62.6 mm

  More information about compatibility:
  - Fiat tractor models 55-90, 60-90 partially

  General descriptions of the generator's terminals:
  - B+,+ = charging current to the battery's + terminal
  - D-, B- = generator's grounding to the battery's - terminal/chassis
  - IND, I, D+ = activating the generator via charging lamp
  - W = impulse terminal for electric tachometer
  - S = sensor for the battery's temperature sensor (Ford)
  - AUX = additional connection for extra equipment
  - F = field in DC generators
• Suitable for models
• Fiat 1180
  Fiat 1380
  Fiat 1580
  Fiat 1880
  Fiat 580
  Fiat 640
  Fiat 680
  Fiat 780
  Fiat 880
  Fiat 980
  Fiatagri 55-90

• Product groups
• Fiat - Fiatagri

• OEM part no.
• FI 4787665
  FI 77515410
