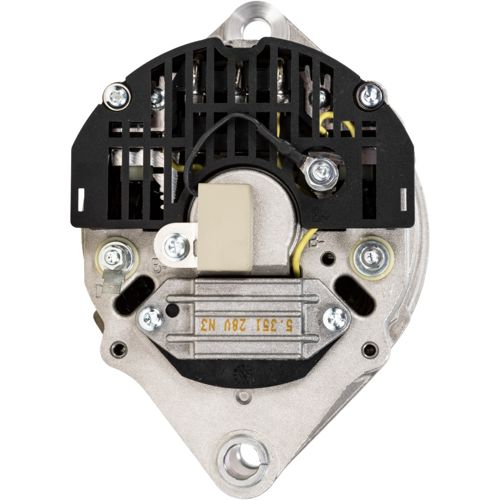

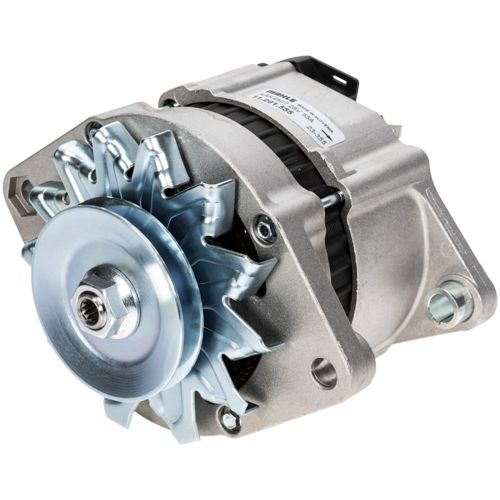

Alternating current generator Mahle 55A 24V Fiat Kobelco

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDSTL24017M

  ManufacturerMahle

  Characteristics

  - 55 A
  - 24 V
  - pulley with 1 groove Ø 80 mm
  - shaft 17 mm
  - mounting hole Ø 12.2 mm
  - distance between mounting holes 62.6 mm
  - W connector

  More information on compatibility:
  - Iveco engines 8045, 8065, 8285, 8465

  General descriptions of the generator's pins:
  - B+,+ = charging current to the battery's + terminal
  - D-, B- = generator's grounding to the battery's - terminal/chassis
  - IND, I, D+ = activation of the generator via the charging light
  - W = impulse pin for electric tachometer
  - S = sensor for the battery temperature sensor (Ford)
  - AUX = extra connection for additional equipment
  - F = field in DC generators
• Suitable for models
• Fiat Hitachi 120
  Fiat Hitachi 150
  Fiat Hitachi 150-2
  Fiat Hitachi 150-3
  Fiat Hitachi 200
  Fiat Hitachi 200LC
  Fiat Hitachi 300
  Fiat Hitachi 300LC
