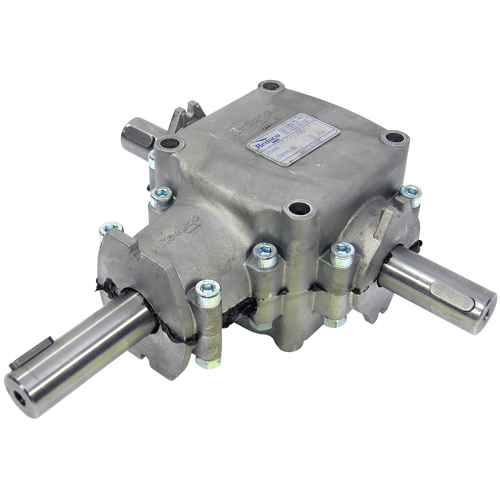

Angle Gear R035 1:1

Qty:

Add to cart

Add to cart

• Info
• Stock status

  Product IDR0350801

  ManufacturerREDUCO

  Characteristics- Power class 13-18 kW / 18-24 HP
  - Gear ratio 1:1

  This angle gear is from Reduco with over 20 years of experience in development and manufacturing. Designed and tested to meet high demands.

  - power class 13-18 kW / 18-24 HP
  - weight 4.5 kg
  - gear ratio 1:1

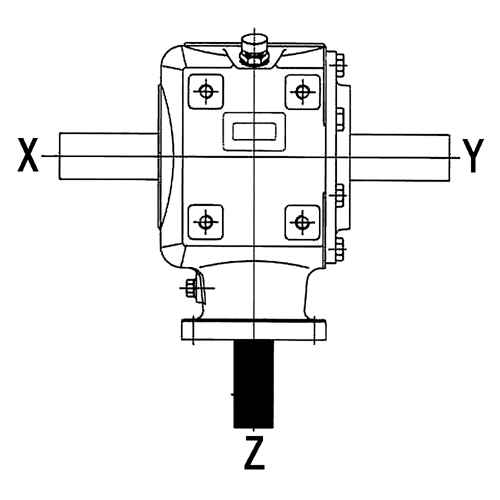

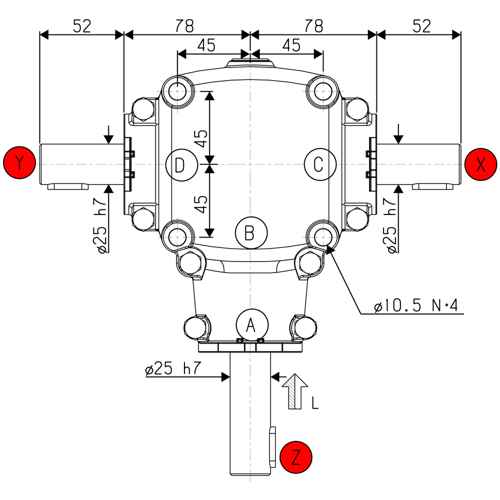

  - X = Ø 25 h7
  - Z = Ø 25 h7
  - Y = Ø 25 h7
  - driving shaft Z
  - power transmission max. 540 rpm / 13 kW / 18 HP / 24 daNm 1000 rpm / 18 kW / 24 HP / 17 daNm

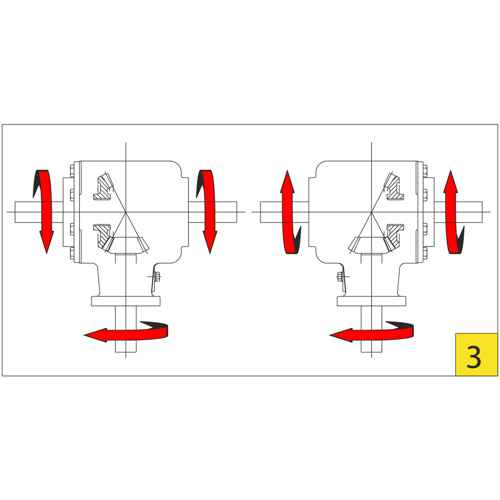

  - rotation direction 3
  - 3 driving shafts
  - suitable grease NLGI.00EP

  Note! Aluminum angle gears are delivered with oil from the factory
