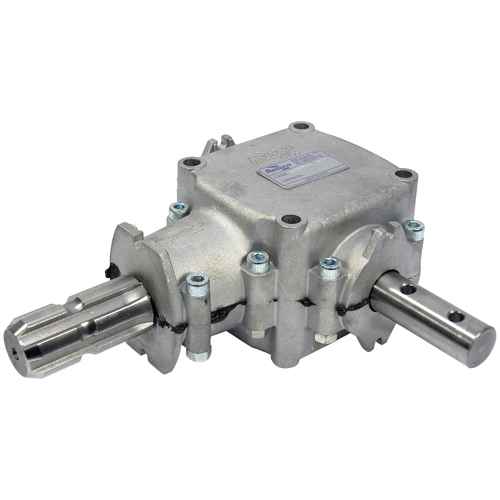

Angle Gear R035 1:1

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDR0350344

  ManufacturerREDUCO

  Characteristics- Power range 13-18 kW / 18-24 HP
  - Gear ratio 1:1

  - power class 13-18 kW / 18-24 HP
  - weight 4.5 kg
  - gear ratio 1:1

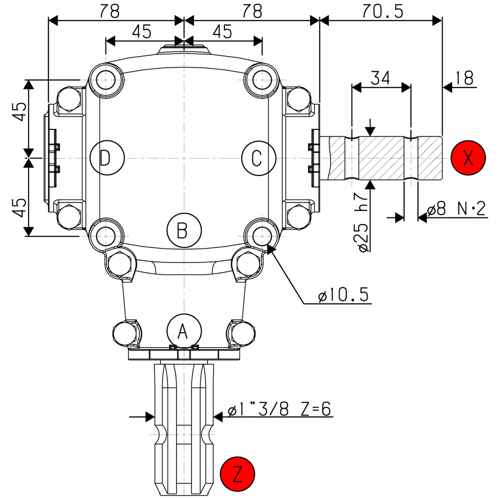

  - X = Ø 25 h7
  - Z = Ø 1 3/8" Z6
  - driving shaft Z
  - power transmission max. 540 rpm / 13 kW / 18 HP / 24 daNm 1000 rpm / 18 kW / 24 HP / 17 daNm

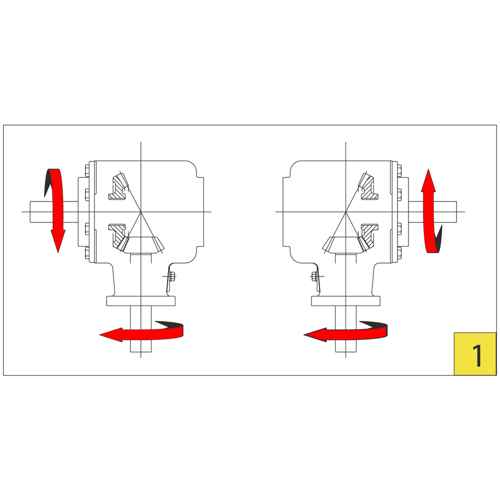

  - rotation direction 1
  - 2 driving shafts
  - suitable grease NLGI.00EP

  Note! Aluminum angle gears are delivered with oil from the factory
