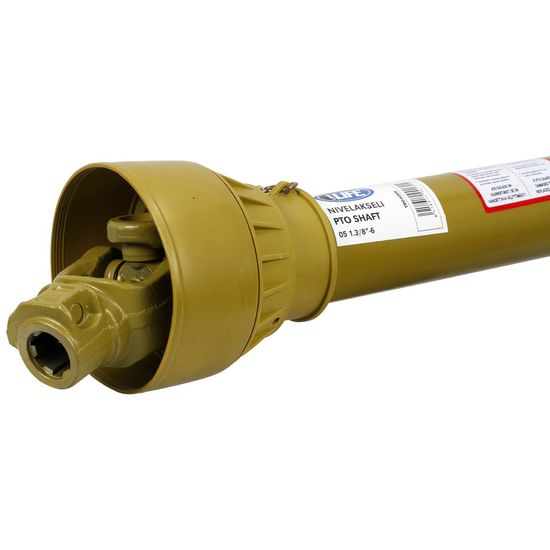

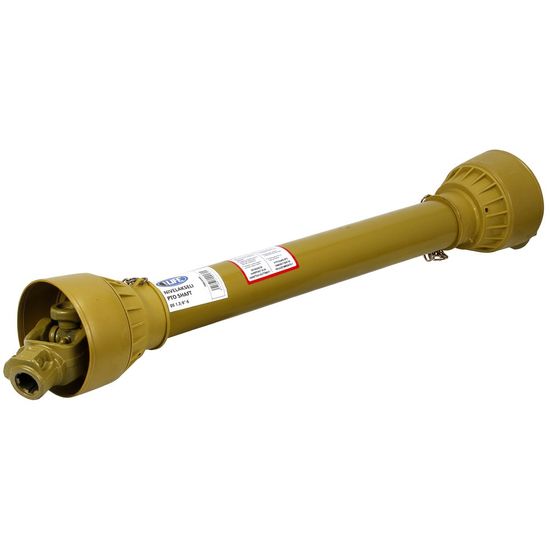

PTO Shaft 05 1.3/8-6

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDT904086

  ManufacturerAGRILIFE

  Characteristics

  - type: 05
  - fork tractor side: 1.3/8"-6 splines locking pin
  - fork implement side: 1.3/8"-6 splines locking pin
  - power 540 rpm: 35 kW / 47 hp / 620 Nm
  - power 1000 rpm: 55 kW / 75 hp / 525 Nm
  - length: L 860 mm, M min. 1082 mm, M max. 1414 mm
  - cross journals: A/B: 30.2 x 80 mm
  - inner tube: triangular A 44.7 mm, S 4 mm
  - outer tube: triangular A 51.3 mm, S 2.9 mm
  - applications: log splitters, trailers, small snow blowers

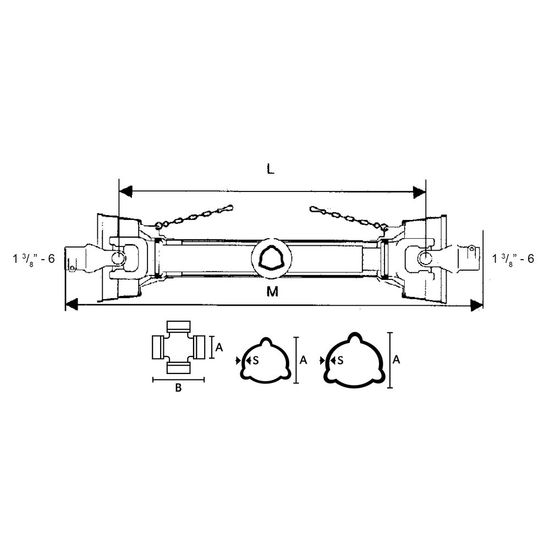

  - see image for dimensions
  - values determined with continuous load, 5° angle, and 1000 operating hours
