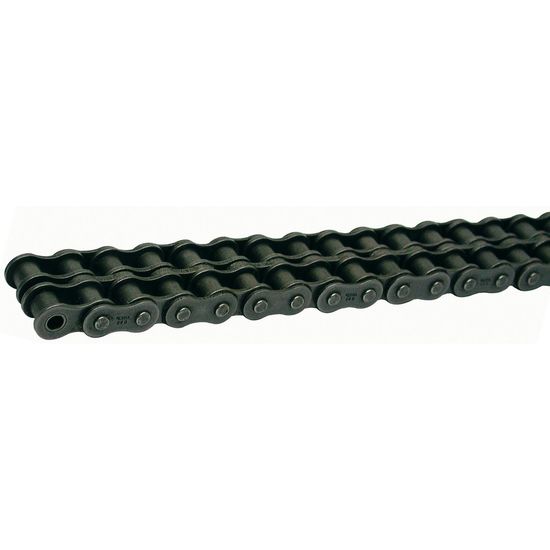

Roller chain 5/8 Din8187 1.8 meters

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDRKK10B2_2

  Manufacturer

  Characteristics- Length: 1.8 meters
  - Pitch 5/8 inch

  - Length: 1.8 meters
  - Pitch: 5/8"
  - DR roller Ø mm: 10.16
  - W inner measurement min. mm: 9.65
  - HI height max. mm: 14.73
  - S material thickness mm: 1.63 / 1.53
  - TP cross-section: 16.59
  - DP pin thickness max. mm: 5.08
  - A2 width from rivet end mm: 35.8
  - B extension width mm: 44.0
  - bearing area mm²: 137
  - breaking load N: 390
  - min. tensile strength kN: 44.5
  - average tensile strength kN: 49.00
  - weight kg/m: 1.73
