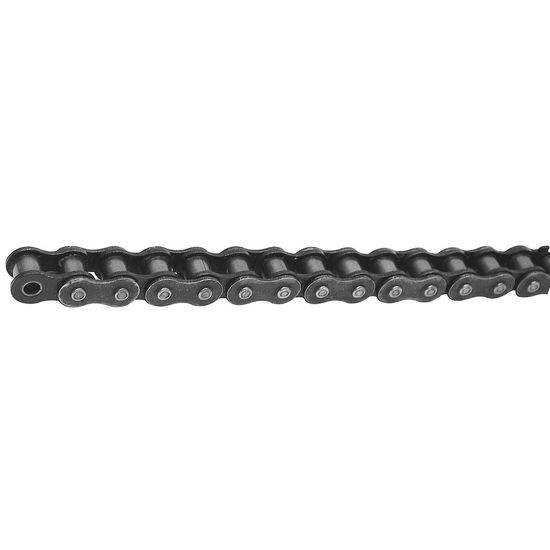

Roller chain 1 Din8187 Euro 1.9 meters

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDRKR16B1_2

  ManufacturerREGINA

  Characteristics- Length: 1.9 meters
  - Division 1 inch

  - Length: 1.9 meters
  - P-division: 1"
  - DR roller Ø mm: 15.88
  - W inner dimensions min. mm: 17.02
  - HI height max. mm: 21.08
  - S material thickness mm: 3.80 / 3.00
  - DP pin thickness max. mm: 8.28
  - A1 width from rivet end mm: 35.90
  - B extension width mm: 46
  - bearing surface mm²: 210
  - breaking load N: 500
  - min. breaking strength kN: 60.00
  - average breaking strength kN: 63.35
  - weight kg/m: 2.62
