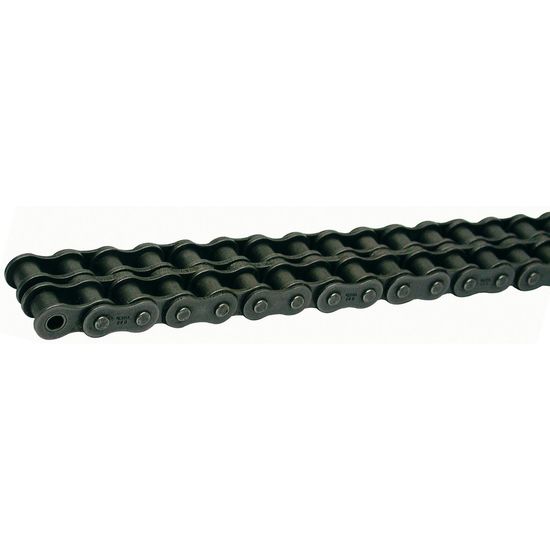

Double roller chain 1/2 Din8187 Euro 9 meters

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDRKR08B2_2

  ManufacturerREGINA

  Characteristics- Length: 9 meters
  - Pitch 1/2 inch

  - Length: 9 meters
  - Pitch: 1/2"
  - DR roller Ø mm: 8,51
  - W inner dimension min. mm: 7,75
  - HI max. height mm: 11,81
  - S material thickness mm: 1,63 / 1,40
  - TP cross pitch: 13,92
  - DP tap thickness max. mm: 4,45
  - A2 width from the end of the rivet mm: 30,4
  - B extension width mm: 38,2
  - bearing surface mm²: 100
  - breaking load N: 250
  - min. breaking strength kN: 31,1
  - average breaking strength kN: 35,10
  - weight kg/m: 1,36
