Cab Heater 12V

Qty:

Add to cart

LĂ€gg i kundvagnen

• Info
• Stock status

  Product IDCRX12001

  ManufacturerCRX

  CharacteristicsDimensions: 275x115x199 mm
  16 mm hose connection


  A perfect cabin element suitable for many innovative installations in various environments.

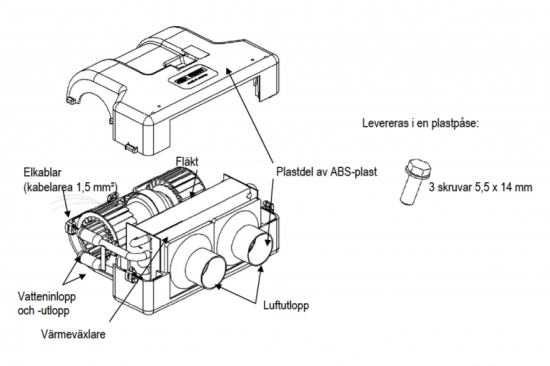

  The heater consists of a fan, a coil, and two plastic parts. The plastic parts are made of heat and impact-resistant ABS plastic.
  The heater has up to two speeds. The unit has inlet and outlet pipes for cooling water and for air.

  Operating principle:
  The cooling water is heated by the vehicle and circulates in the coil. At the same time, the fan unit blows fresh air through the heat exchanger.
  The air temperature increases and the air outlet eventually releases the warm air.

  Also available complete with front panel (Part no. CRX12004)
  Also available in 24V version (Part no. CRX24002)

  Technical specification:
  - voltage 12 V / 6 A
  - power 4.3 kW
  - 2 speeds
  - nominal air flow 240 mł/h

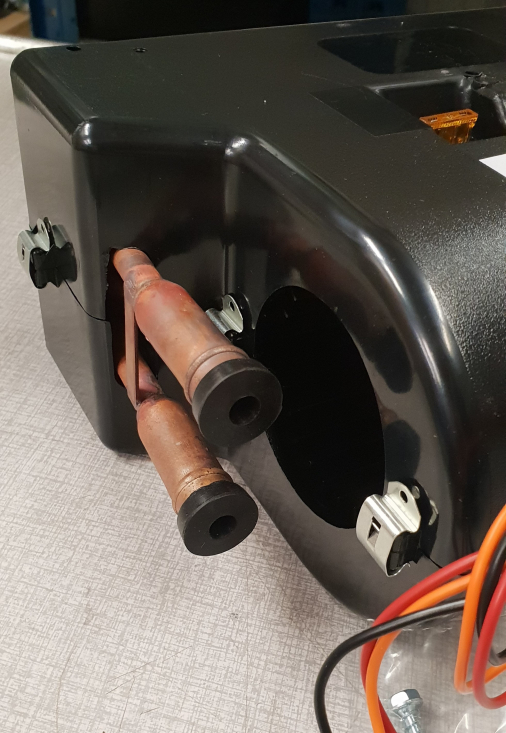

  - 16 mm hose connection
  - heat-resistant ABS plastic
  - dimensions: 275 x 115 x 199 mm
  - dimensions at air outlet (front) 17.3x8.3 cm
  - weight 1.6 kg

  Wiring diagram: black = grounding, orange = speed 1, red = speed 2
