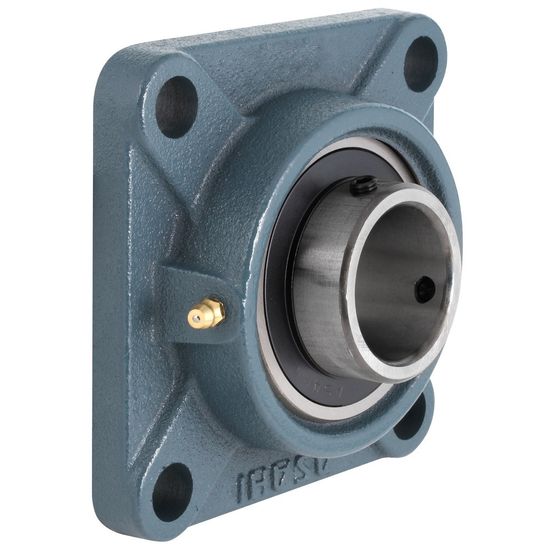

Bearing 50mm Flange LUCF210

• Info
• Stock status

  Product IDLUCF210

  Manufacturer

  Characteristics

  Dimensions:
  - bore diameter (d) 50 mm
  - outer ring outside diameter (d1) 62.51 mm
  - total width (A) 39.5 mm
  - flange width (A1) 16 mm
  - projection, end cover (A5) 33 mm
  - bearing total width (B) 51.6 mm
  - distance from locking device side to thread center (B4) 9 mm
  - end outside diameter (Db1) 115 mm
  - distance between mounting holes (J) 111 mm
  - total length (L) 143 mm
  - hole diameter for mounting bolt (N) 16 mm
  - distance from locking device side to bearing insert center (s1) 32.6 mm
  - unit total width (T) 54.6 mm
  - grease nipple main diameter (DN) 6.589 mm
  - wrench size for grease nipple (SWN) 11.11 mm
  - thread of grease nipple (GN) 1/8-27 NPT
  - housing thread for grease nipple (RG) 1/8-27 NPT
  - axial position of housing thread (R1) 25 mm

  Calculated data:
  - dynamic load rating (C) 35.1 kN
  - static load rating (C0) 23.2 kN
  - fatigue load limit (Pu) 0.98 kN
  - limiting speed 3300 r/min
