Ball bearing 35X55X10 Skf

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDSKF61907-2RZ

  Manufacturer

  Characteristics

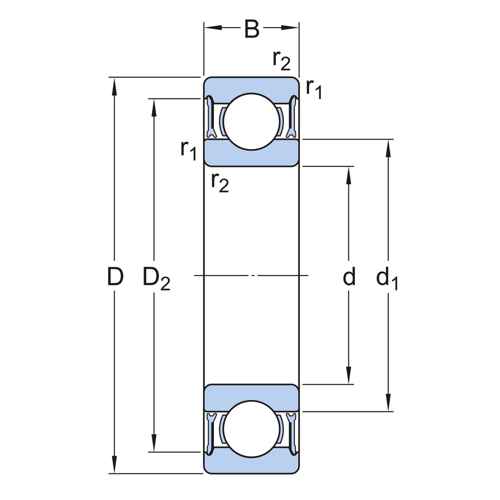

  Dimensions:
  - bore diameter (d) 35 mm
  - outside diameter (D) 55 mm
  - width (B) 10 mm
  - inner ring shoulder diameter (d1) 42.2 mm
  - diameter for outer ring shoulder (D2) 52.15 mm
  - outer ring chamfer dimension (r1,2) min. 0.6 mm

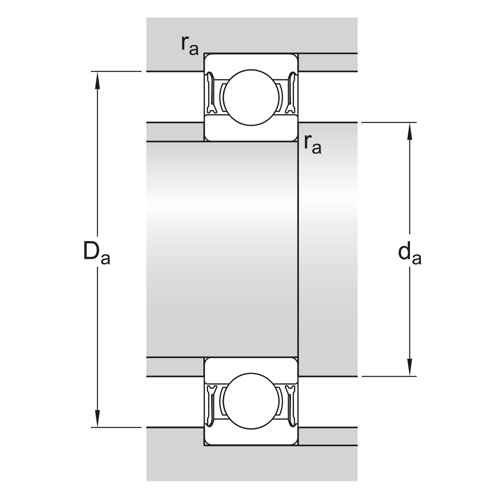

  Mounting dimensions:
  - shaft minimum seating diameter (da) 38.2 mm
  - shaft maximum seating diameter (da) 41.5 mm
  - housing maximum seating diameter (Da) 51.8 mm
  - fillet radius (ra) max. 0.6 mm

  Calculated data:
  - dynamic load rating (C) 10.8 kN
  - static load rating (C0) 7.8 kN
  - fatigue load limit (Pu) 0.325 kN
  - reference speed 26000 r/min
  - limiting speed 13000 r/min
  - calculation factor (kr) 0.02
  - calculation factor (f0) 15.7
