Ball bearing 30X62X16 Skf

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDSKFW6207-2RS1

  Manufacturer

  Characteristics

  Dimensions:
  - bore diameter (d) 35 mm
  - outside diameter (D) 72 mm
  - width (B) 17 mm
  - inner ring shoulder diameter (d1) 47.6 mm
  - diameter for inner ring shoulder clearance (d2) 47.6 mm
  - diameter for outer ring shoulder clearance (D2) 64.83 mm
  - outer ring chamfer dimension (r1,2) min. 1.1 mm

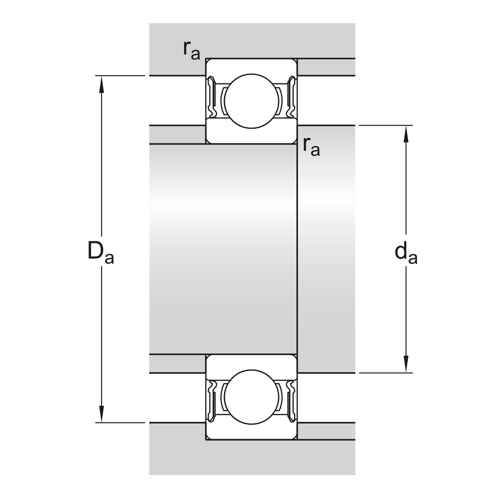

  Installation dimensions:
  - shaft bore diameter (da) min. 41.5 mm
  - shaft bore diameter (da) max. 46.5 mm
  - housing bore diameter (Da) max. 65.5 mm
  - chamfer dimension (ra) max. 1 mm

  Calculated data:
  - dynamic load rating (C) 22.1 kN
  - static load rating (C0) 15.3 kN
  - fatigue load limit (Pu) 0.655 kN
  - limiting speed 6000 r/min
  - calculation factor (kr) 0.03
  - calculation factor (f0) 13.9
