Ball bearing 30X55X13 Skf

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDSKF6006-2RS1C3

  Manufacturer

  Characteristics

  Dimensions:
  - bore diameter (d) 30 mm
  - outer diameter (D) 55 mm
  - width (B) 13 mm
  - inner ring shoulder diameter (d1) 38.2 mm
  - diameter for outer ring shoulder clearance (D2) 49 mm
  - outer ring fillet radius (r1,2) min. 1 mm

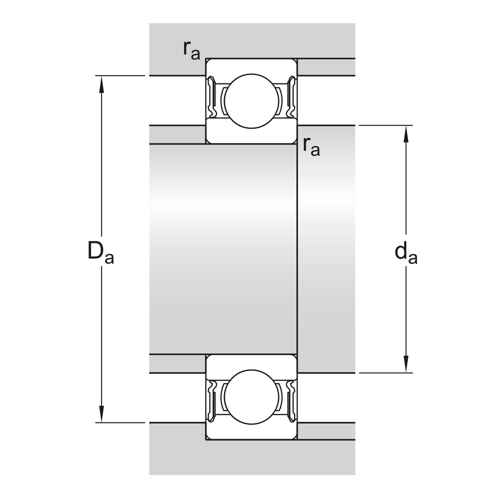

  Installation dimensions:
  - shaft bore diameter (da) min. 34.6 mm
  - shaft bore diameter (da) max. 38.1 mm
  - housing bore diameter (Da) max. 50.4 mm
  - chamfer dimension (ra) max. 1 mm

  Calculated data:
  - dynamic load rating (C) 13.8 kN
  - static load rating (C0) 8.3 kN
  - fatigue load limit (Pu) 0.355 kN
  - limiting speed 8000 r/min
  - calculation factor (kr) 0.025
  - calculation factor (f0) 15
