Ball bearing 25X62X17 Skf

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDSKFW6305-2RS1

  Manufacturer

  Characteristics

  Dimensions:
  - bore diameter (d) 25 mm
  - outside diameter (D) 62 mm
  - width (B) 17 mm
  - inner ring shoulder diameter (d1) 38.1 mm
  - diameter for inner ring shoulder clearance (d2) 38.1 mm
  - diameter for outer ring shoulder clearance (D2) 53.22 mm
  - outer ring chamfer dimension (r1,2) min. 1.1 mm

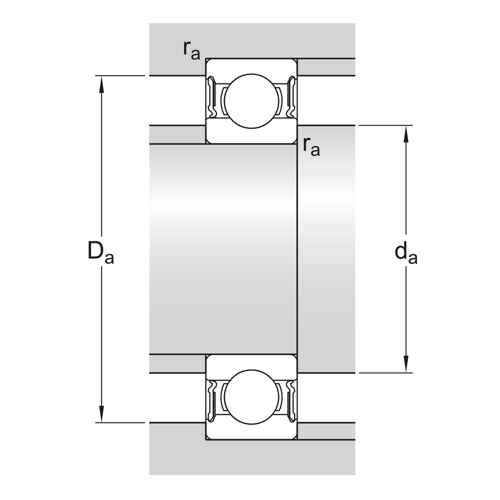

  Installation dimensions:
  - shaft bore diameter (da) min. 31.5 mm
  - shaft bore diameter (da) max. 38 mm
  - housing bore diameter (Da) max. 55.5 mm
  - chamfer dimension (ra) max. 1 mm

  Calculated data:
  - dynamic load rating (C) 17.8 kN
  - static load rating (C0) 11.2 kN
  - fatigue load limit (Pu) 0.48 kN
  - limiting speed 7500 r/min
  - calculation factor (kr) 0.035
  - calculation factor (f0) 13.2
