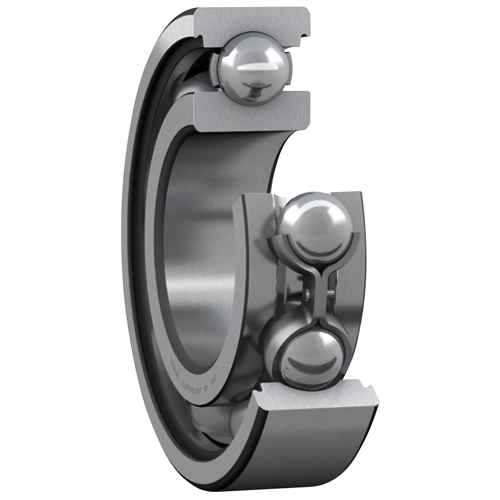

Ball Bearing 25X47X8 Skf

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDSKF16005

  Manufacturer

  Characteristics

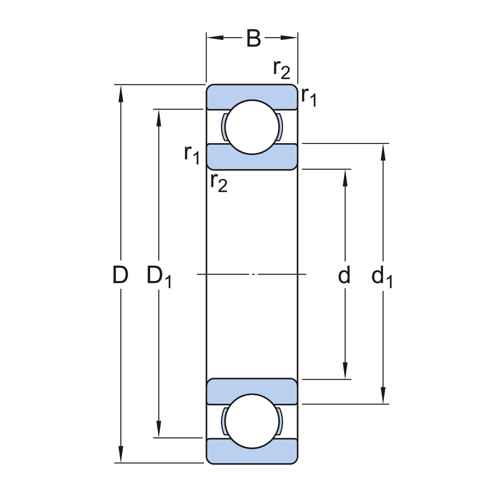

  Dimensions:
  - bore diameter (d) 25 mm
  - outer diameter (D) 47 mm
  - width (B) 8 mm
  - inner ring shoulder diameter (d1) 33.35 mm
  - inner ring shoulder diameter/housing washer inner diameter (D1) 40.4 mm
  - outer ring chamfer (r1,2) min. 0.3 mm

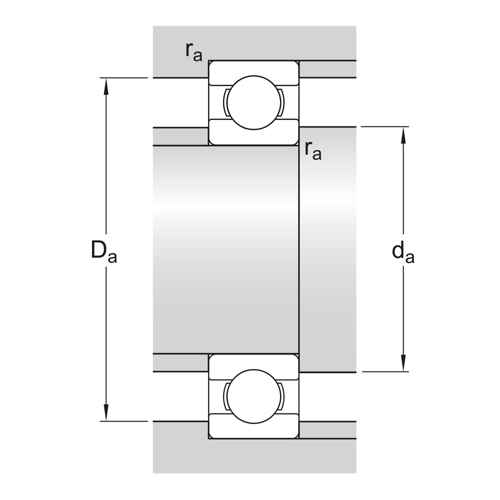

  Mounting dimensions:
  - shaft bore diameter (da) min. 27 mm
  - housing bore diameter (Da) max. 45 mm
  - fillet radius (ra) max. 0.3 mm

  Calculated data:
  - dynamic load rating (C) 8.06 kN
  - static load rating (C0) 4.75 kN
  - fatigue load limit (Pu) 0.212 kN
  - reference speed 32000 r/min
  - limiting speed 20000 r/min
  - calculation factor (kr) 0.02
  - calculation factor (f0) 15
