Ball bearing 25X47X12 Skf in the group Machine and Tractor Accessories / Bearings / Ball Bearings at Sagro.se (SKFW6005-2RS1)

Ball bearing 25X47X12 Skf

€131
Incl. VAT
Trackable international shipping 5-10 business days delivery Secure payments

Add to cart
Add to cart

bet alt
  • Info
  • Stock status
    Product IDSKFW6005-2RS1
    Manufacturer
    Characteristics
    Dimensions:
    - bore diameter (d) 25 mm
    - outside diameter (D) 47 mm
    - width (B) 12 mm
    - inner ring shoulder diameter (d1) 31.7 mm
    - diameter for inner ring shoulder clearance (d2) 31.7 mm
    - diameter for outer ring shoulder clearance (D2) 42.73 mm
    - outer ring chamfer dimension (r1,2) min. 0.6 mm

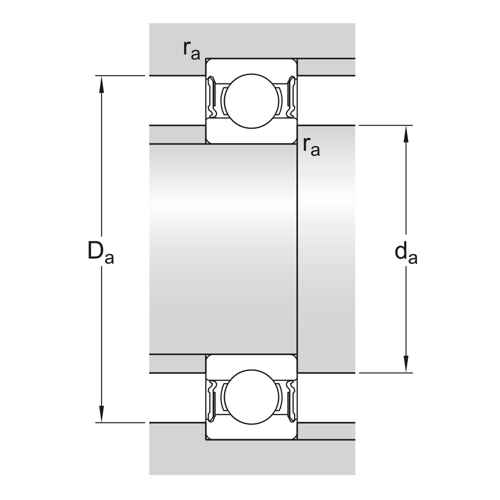

    Mounting dimensions:
    - shaft bore diameter (da) min. 29 mm
    - shaft bore diameter (da) max. 31.5 mm
    - housing bore diameter (Da) max. 44.5 mm
    - fillet radius (ra) max. 0.6 mm

    Calculated data:
    - dynamic load rating (C) 8.71 kN
    - static load rating (C0) 5.85 kN
    - fatigue load limit (Pu) 0.25 kN
    - limiting speed 9500 r/min
    - calculation factor (kr) 0.03
    - calculation factor (f0) 14.5
