Ball bearing 25X42X9 Skf

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDSKF61905-2RS1

  Manufacturer

  Characteristics

  Dimensions:
  - bore diameter (d) 25 mm
  - outside diameter (D) 42 mm
  - width (B) 9 mm
  - inner ring shoulder diameter (d1) 30.25 mm
  - diameter for outer ring shoulder (D2) 37.7 mm
  - outer ring chamfer dimension (r1,2) min. 0.3 mm

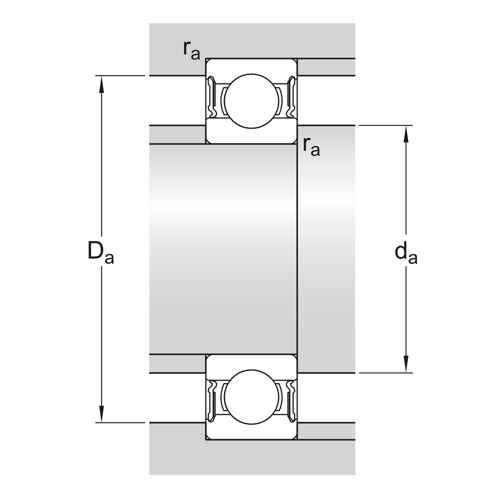

  Mounting dimensions:
  - shaft minimum seating diameter (da) 27 mm
  - shaft maximum seating diameter (da) 29 mm
  - housing maximum seating diameter (Da) 40 mm
  - fillet radius (ra) max. 0.3 mm

  Calculated data:
  - dynamic load rating (C) 7.02 kN
  - static load rating (C0) 4.3 kN
  - fatigue load limit (Pu) 0.193 kN
  - limiting speed 10000 r/min
  - calculation factor (kr) 0.02
  - calculation factor (f0) 14.7
