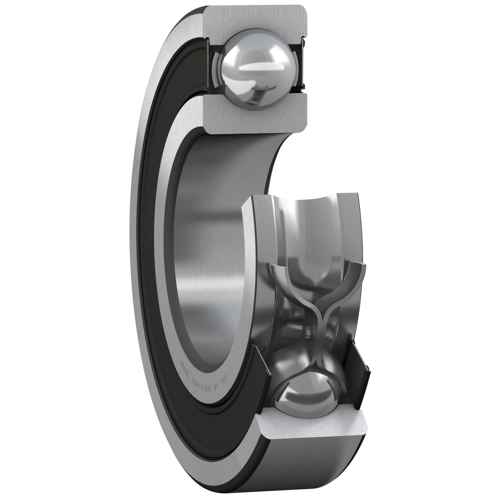

Ball bearing 20X52X15 Skf

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDSKFW6304-2RS1

  Manufacturer

  Characteristics

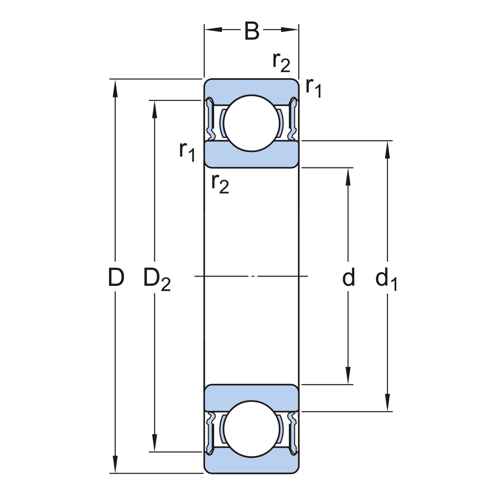

  Dimensions:
  - bore diameter (d) 20 mm
  - outside diameter (D) 52 mm
  - width (B) 15 mm
  - inner ring shoulder diameter (d1) 30 mm
  - diameter for inner ring shoulder clearance (d2) 30 mm
  - diameter for outer ring shoulder clearance (D2) 45.4 mm
  - outer ring chamfer dimension (r1,2) min. 1.1 mm

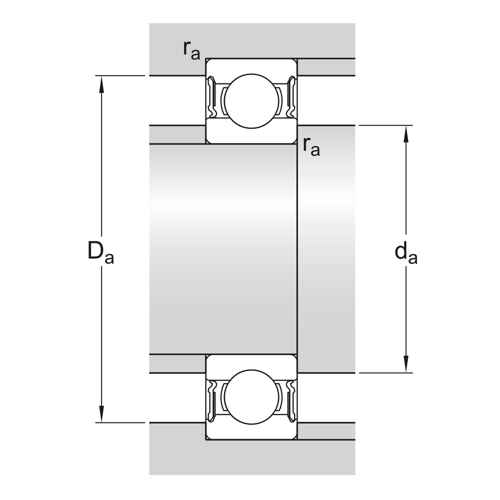

  Installation dimensions:
  - shaft bore diameter (da) min. 26.5 mm
  - shaft bore diameter (da) max. 29.5 mm
  - housing bore diameter (Da) max. 46 mm
  - chamfer dimension (ra) max. 1 mm

  Calculated data:
  - dynamic load rating (C) 13.8 kN
  - static load rating (C0) 7.8 kN
  - fatigue load limit (Pu) 0.335 kN
  - limiting speed 9500 r/min
  - calculation factor (kr) 0.035
  - calculation factor (f0) 12.3
