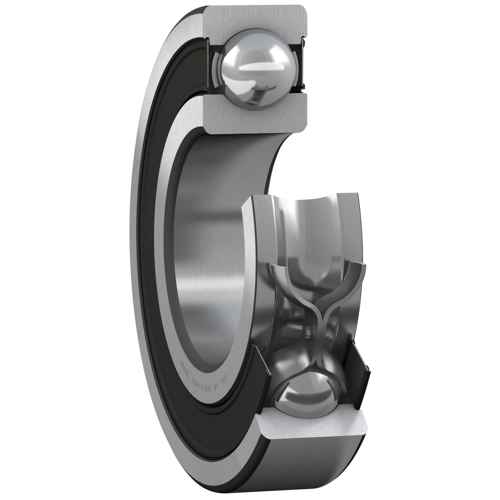

Ball bearing 20X47X14 Skf

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDSKFW6204-2RS1

  Manufacturer

  Characteristics

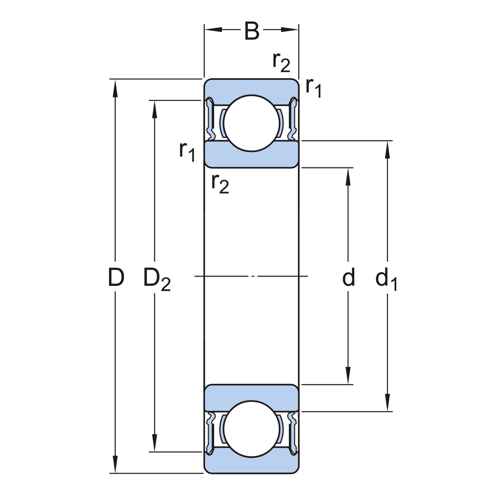

  Dimensions:
  - bore diameter (d) 20 mm
  - outside diameter (D) 47 mm
  - width (B) 14 mm
  - inner ring shoulder diameter (d1) 29.5 mm
  - diameter for inner ring shoulder clearance (d2) 29.5 mm
  - diameter for outer ring shoulder clearance (D2) 40.92 mm
  - outer ring chamfer dimension (r1,2) min. 1 mm

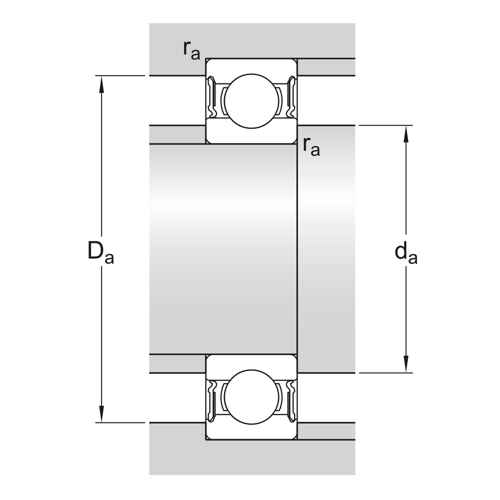

  Installation dimensions:
  - shaft bore diameter (da) min. 25 mm
  - shaft bore diameter (da) max. 29 mm
  - housing bore diameter (Da) max. 42 mm
  - chamfer dimension (ra) max. 1 mm

  Calculated data:
  - dynamic load rating (C) 10.8 kN
  - static load rating (C0) 6.55 kN
  - fatigue load limit (Pu) 0.28 kN
  - limiting speed 10000 r/min
  - calculation factor (kr) 0.03
  - calculation factor (f0) 13.1
