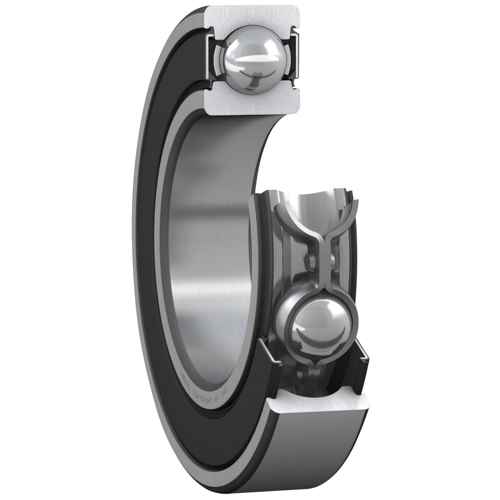

Ball bearing 20X47X14 Skf

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDSKF6204-2RSHC3

  Manufacturer

  Characteristics

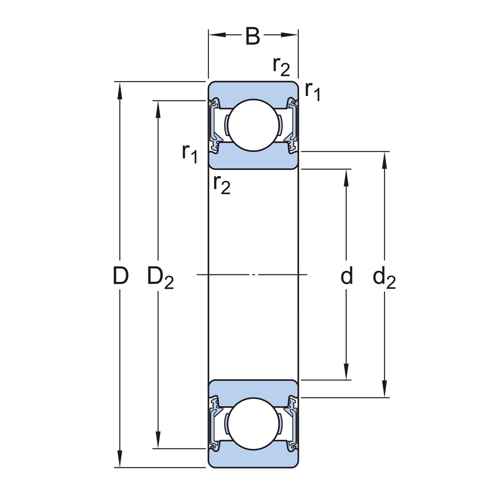

  Dimensions:
  - bore diameter (d) 20 mm
  - outside diameter (D) 47 mm
  - width (B) 14 mm
  - diameter for inner ring (largest side face) (d2) 25.46 mm
  - diameter for outer ring shoulder (D2) 40.59 mm
  - outer ring chamfer dimension (r1,2) min. 1 mm

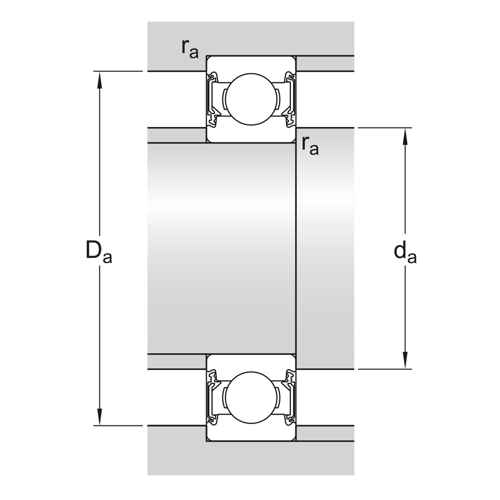

  Mounting dimensions:
  - shaft minimum seating diameter (da) 25.6 mm
  - shaft maximum seating diameter (da) 26 mm
  - housing maximum seating diameter (Da) 41.4 mm
  - fillet radius (ra) max. 1 mm

  Calculated data:
  - dynamic load rating (C) 13.5 kN
  - static load rating (C0) 6.55 kN
  - fatigue load limit (Pu) 0.28 kN
  - limiting speed 10000 r/min
  - calculation factor (kr) 0.025
  - calculation factor (f0) 13.1
