Ball bearing 20X42X12 Skf

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDSKFW6004-2RS1

  Manufacturer

  Characteristics

  Dimensions:
  - bore diameter (d) 20 mm
  - outside diameter (D) 42 mm
  - width (B) 12 mm
  - inner ring shoulder diameter (d1) 27.6 mm
  - diameter for inner ring shoulder clearance (d2) 27.6 mm
  - diameter for outer ring shoulder clearance (D2) 38.75 mm
  - outer ring chamfer dimension (r1,2) min. 0.6 mm

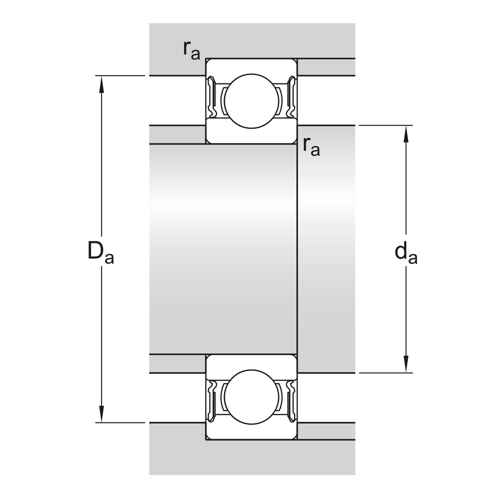

  Mounting dimensions:
  - shaft bore diameter (da) min. 24 mm
  - shaft bore diameter (da) max. 27.5 mm
  - housing bore diameter (Da) max. 39.5 mm
  - fillet radius (ra) max. 0.6 mm

  Calculated data:
  - dynamic load rating (C) 8.06 kN
  - static load rating (C0) 5 kN
  - fatigue load limit (Pu) 0.212 kN
  - limiting speed 11000 r/min
  - calculation factor (kr) 0.03
  - calculation factor (f0) 13.9
