Ball bearing 17X30X7 Skf

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDSKF61903-2RS1

  Manufacturer

  Characteristics

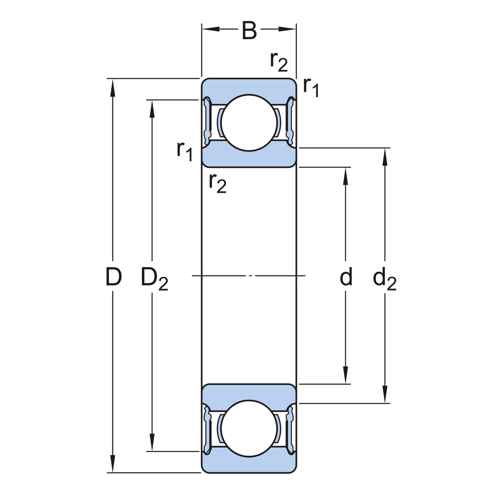

  Dimensions:
  - bore diameter (d) 17 mm
  - outside diameter (D) 30 mm
  - width (B) 7 mm
  - diameter for inner ring shoulder (d2) 19.4 mm
  - diameter for outer ring shoulder (D2) 27.7 mm
  - outer ring chamfer dimension (r1,2) min. 0.3 mm

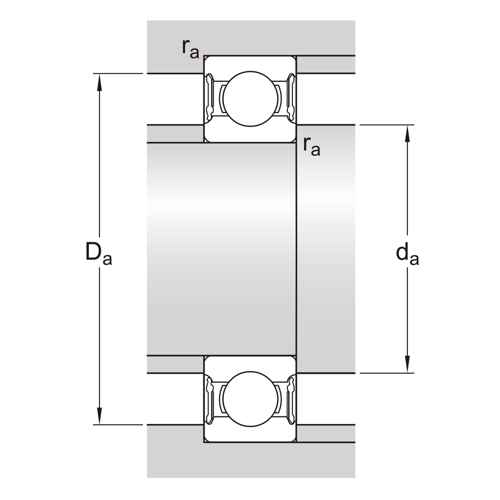

  Mounting dimensions:
  - shaft minimum seating diameter (da) 19 mm
  - shaft maximum seating diameter (da) 19.3 mm
  - housing maximum seating diameter (Da) 28 mm
  - fillet radius (ra) max. 0.3 mm

  Calculated data:
  - dynamic load rating (C) 4.62 kN
  - static load rating (C0) 2.55 kN
  - fatigue load limit (Pu) 0.108 kN
  - limiting speed 14000 r/min
  - calculation factor (kr) 0.02
  - calculation factor (f0) 14.7
