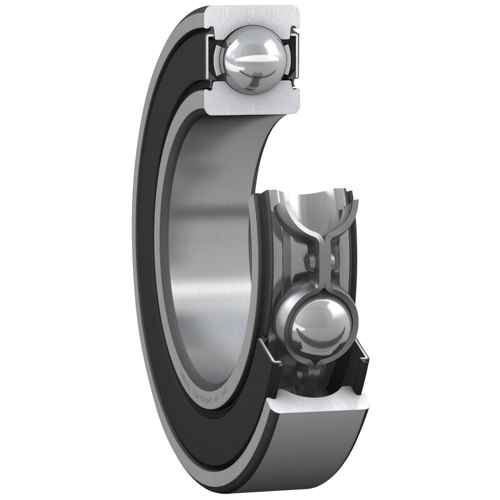

Ball bearing 15X35X11 Skf

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDSKF6202-2RSHC3

  Manufacturer

  Characteristics

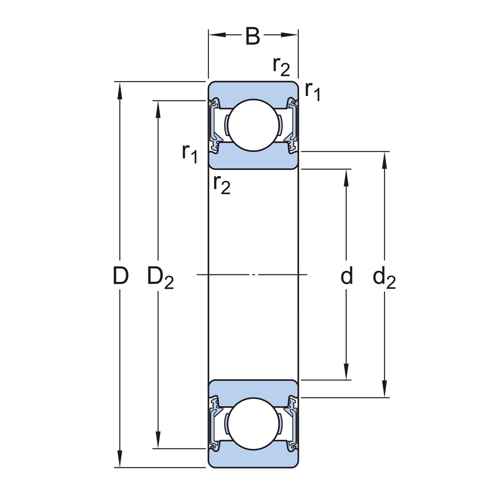

  Dimensions:
  - bore diameter (d) 15 mm
  - outside diameter (D) 35 mm
  - width (B) 11 mm
  - diameter for inner ring (largest side face) (d2) 18.6 mm
  - diameter for outer ring shoulder (D2) 30.5 mm
  - outer ring chamfer dimension (r1,2) min. 0.6 mm

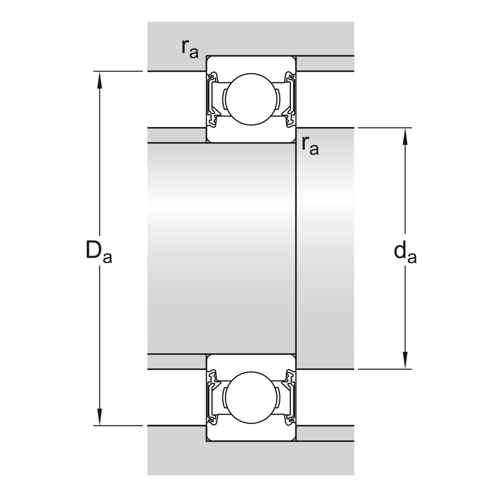

  Mounting dimensions:
  - shaft minimum seating diameter (da) 19.2 mm
  - shaft maximum seating diameter (da) 19.4 mm
  - housing maximum seating diameter (Da) 30.8 mm
  - fillet radius (ra) max. 0.6 mm

  Calculated data:
  - dynamic load rating (C) 8.06 kN
  - static load rating (C0) 3.75 kN
  - fatigue load limit (Pu) 0.16 kN
  - limiting speed 13000 r/min
  - calculation factor (kr) 0.025
  - calculation factor (f0) 13.1
