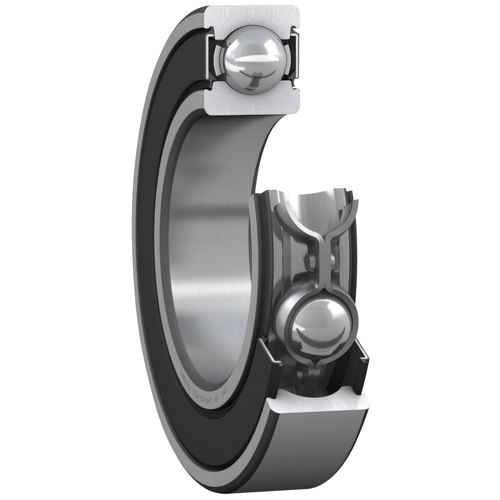

Ball Bearing 15X32X9 Skf

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDSKF6002-2RSHC3

  Manufacturer

  Characteristics

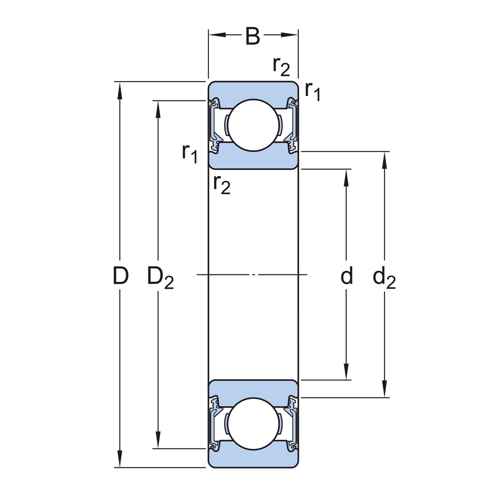

  Dimensions:
  - bore diameter (d) 15 mm
  - outer diameter (D) 32 mm
  - width (B) 9 mm
  - diameter for inner ring shoulder clearance (largest side face) (d2) 18.3 mm
  - diameter for outer ring shoulder clearance (D2) 28.2 mm
  - outer ring fillet radius (r1,2) min. 0.3 mm

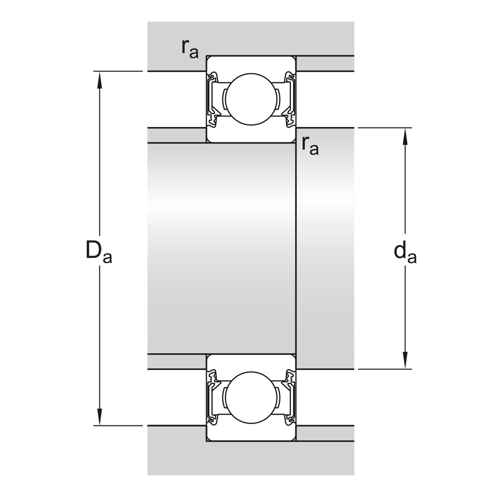

  Installation dimensions:
  - shaft bore diameter (da) min. 17 mm
  - shaft bore diameter (da) max. 18.5 mm
  - housing bore diameter (Da) max. 30 mm
  - chamfer dimension (ra) max. 0.3 mm

  Calculated data:
  - dynamic load rating (C) 5.85 kN
  - static load rating (C0) 2.85 kN
  - fatigue load limit (Pu) 0.12 kN
  - limiting speed 14000 r/min
  - calculation factor (kr) 0.025
  - calculation factor (f0) 14
• Product groups
• Ball Bearings

• Reviews
