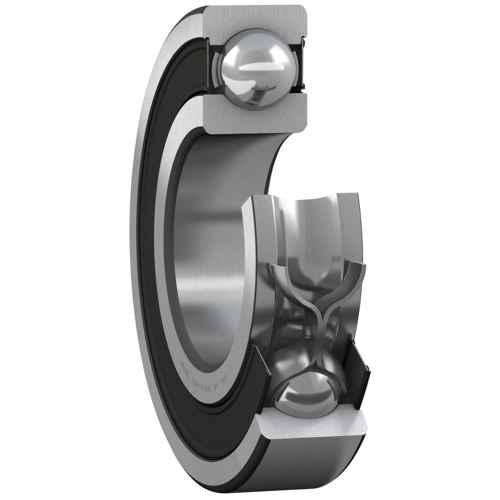

Ball bearing 15X32X9 Skf

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDSKFW6002-2RS1

  Manufacturer

  Characteristics

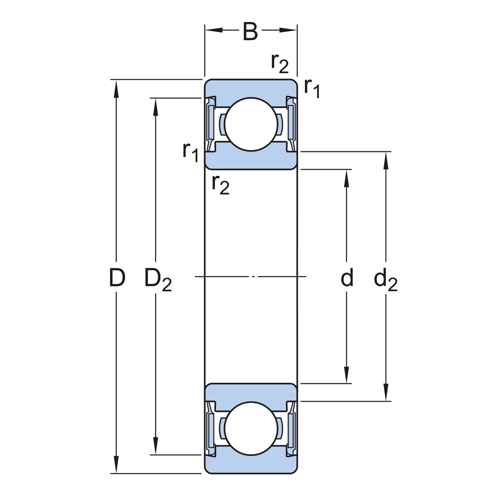

  Dimensions:
  - bore diameter (d) 15 mm
  - outer diameter (D) 32 mm
  - width (B) 9 mm
  - diameter for inner ring abutment shoulder (d2) 18.6 mm
  - diameter for outer ring abutment shoulder (D2) 29.05 mm
  - outer ring chamfer dimension (r1,2) min. 0.3 mm

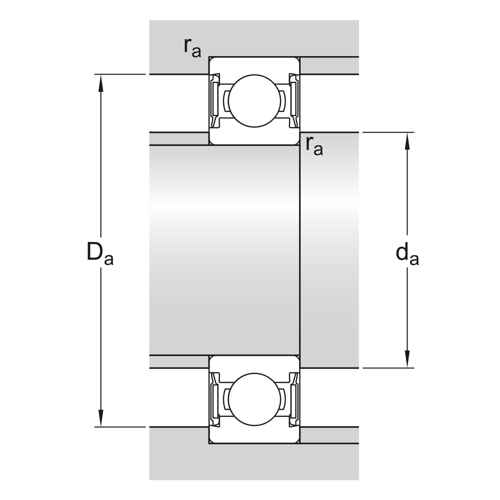

  Installation dimensions:
  - axle housing bore diameter (da) min. 17 mm
  - axle housing bore diameter (da) max. 18.5 mm
  - housing bore diameter (Da) max. 30 mm
  - fillet radius (ra) max. 0.3 mm

  Calculated data:
  - dynamic load rating (C) 4.88 kN
  - static load rating (C0) 2.8 kN
  - fatigue load limit (Pu) 0.12 kN
  - limiting speed 14000 r/min
  - calculation factor (kr) 0.03
  - calculation factor (f0) 13.9
