Ball bearing 12X28X8 Skf

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDSKFW6001-2RS1

  Manufacturer

  Characteristics

  Dimensions:
  - bore diameter (d) 12 mm
  - outer diameter (D) 28 mm
  - width (B) 8 mm
  - diameter for inner ring abutment shoulder (d2) 16 mm
  - diameter for outer ring abutment shoulder (D2) 25.15 mm
  - outer ring chamfer dimension (r1,2) min. 0.3 mm

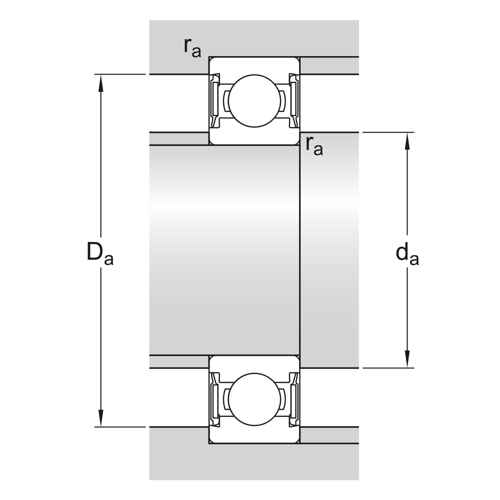

  Installation dimensions:
  - axle housing bore diameter (da) min. 14 mm
  - axle housing bore diameter (da) max. 15.5 mm
  - housing bore diameter (Da) max. 26 mm
  - fillet radius (ra) max. 0.3 mm

  Calculated data:
  - dynamic load rating (C) 4.42 kN
  - static load rating (C0) 2.36 kN
  - fatigue load limit (Pu) 0.102 kN
  - limiting speed 16000 r/min
  - calculation factor (kr) 0.03
  - calculation factor (f0) 13.2
