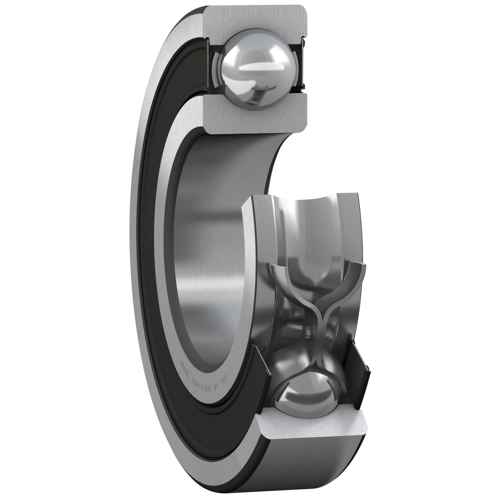

Ball bearing 12X24X6 Skf

Qty:

Add to cart

Add to cart

• Info
• Stock status

  Product IDSKF61901-2RS1

  Manufacturer

  Characteristics

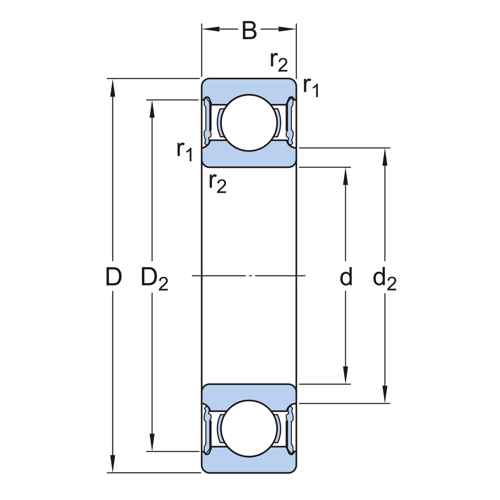

  Dimensions:
  - bore diameter (d) 12 mm
  - outside diameter (D) 24 mm
  - width (B) 6 mm
  - diameter for inner ring shoulder (d2) 15.35 mm
  - diameter for outer ring shoulder (D2) 21.4 mm
  - outer ring chamfer dimension (r1,2) min. 0.3 mm

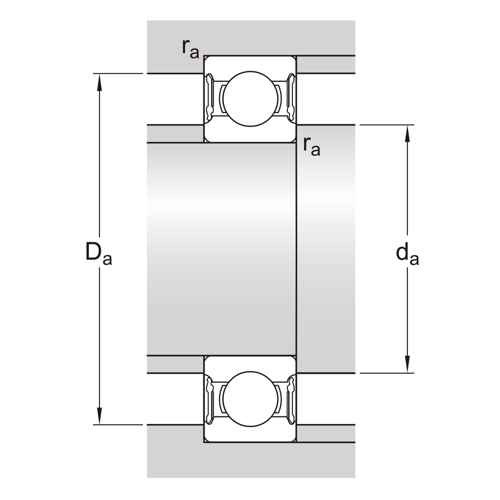

  Mounting dimensions:
  - shaft minimum seating diameter (da) 14 mm
  - shaft maximum seating diameter (da) 15.2 mm
  - housing maximum seating diameter (Da) 22 mm
  - fillet radius (ra) max. 0.3 mm

  Calculated data:
  - dynamic load rating (C) 2.91 kN
  - static load rating (C0) 1.46 kN
  - fatigue load limit (Pu) 0.062 kN
  - limiting speed 19000 r/min
  - calculation factor (kr) 0.02
  - calculation factor (f0) 14.5
