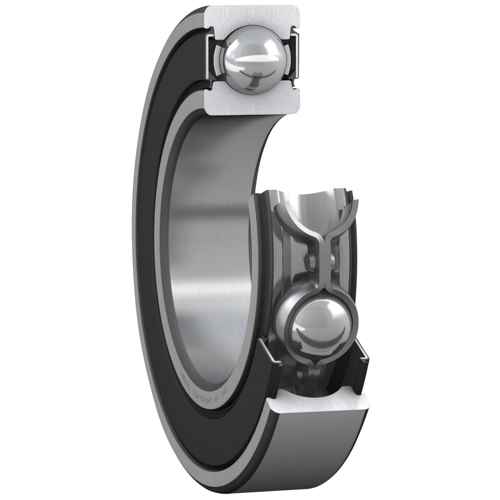

Ball bearing 10X35X11 Skf

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDSKF6300-2RSHC3

  Manufacturer

  Characteristics

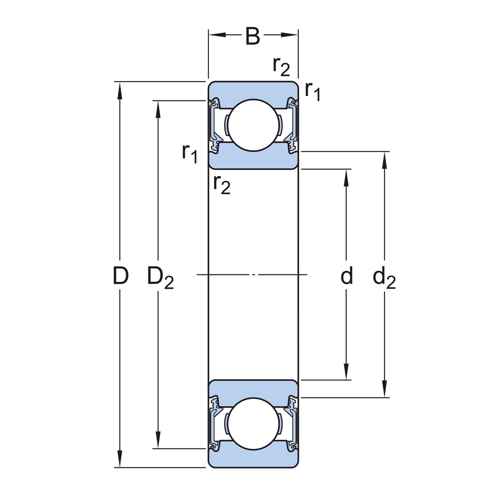

  Dimensions:
  - bore diameter (d) 10 mm
  - outer diameter (D) 35 mm
  - width (B) 11 mm
  - diameter for inner ring abutment (largest side face) (d2) 15.5 mm
  - diameter for outer ring abutment shoulder (D2) 28.68 mm
  - outer ring chamfer dimension (r1,2) min. 0.6 mm

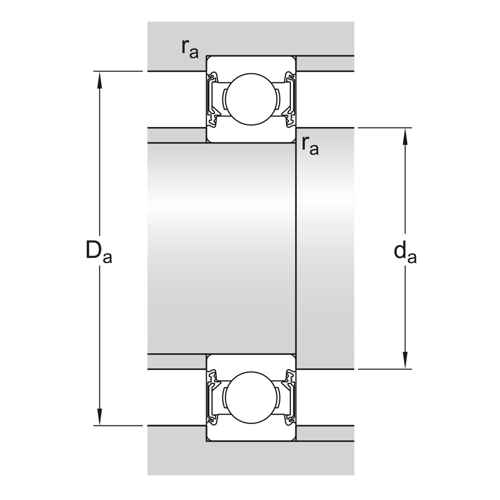

  Installation dimensions:
  - axle housing bore diameter (da) min. 14.2 mm
  - axle housing bore diameter (da) max. 15.5 mm
  - housing bore diameter (Da) max. 30.8 mm
  - fillet radius (ra) max. 0.6 mm

  Calculated data:
  - dynamic load rating (C) 8.52 kN
  - static load rating (C0) 3.4 kN
  - fatigue load limit (Pu) 0.143 kN
  - limiting speed 15000 r/min
  - calculation factor (kr) 0.03
  - calculation factor (f0) 11
