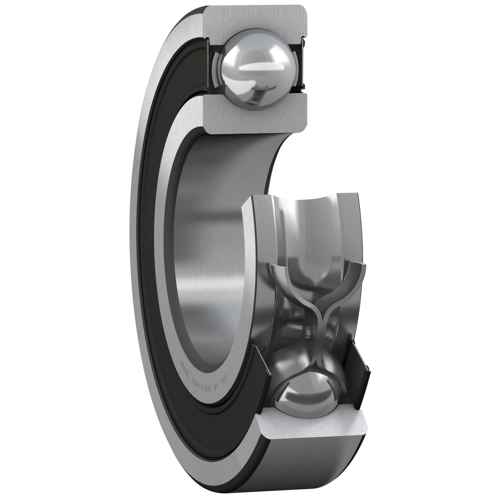

Ball bearing 10X30X9 Skf

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDSKFW6200-2RS1

  Manufacturer

  Characteristics

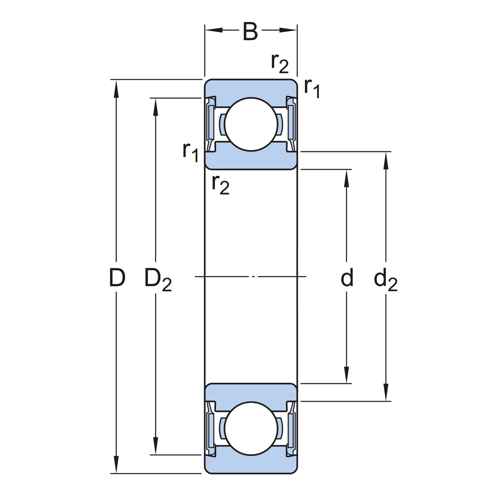

  Dimensions:
  - bore diameter (d) 10 mm
  - outside diameter (D) 30 mm
  - width (B) 9 mm
  - diameter for inner ring shoulder clearance (d2) 15.3 mm
  - diameter for outer ring shoulder clearance (D2) 25.28 mm
  - outer ring chamfer dimension (r1,2) min. 0.6 mm

  Mounting dimensions:
  - shaft bore diameter (da) min. 14 mm
  - shaft bore diameter (da) max. 15 mm
  - housing bore diameter (Da) max. 26 mm
  - fillet radius (ra) max. 0.6 mm

  Calculated data:
  - dynamic load rating (C) 4.36 kN
  - static load rating (C0) 2.32 kN
  - fatigue load limit (Pu) 0.1 kN
  - limiting speed 16000 r/min
  - calculation factor (kr) 0.03
  - calculation factor (f0) 12.9
