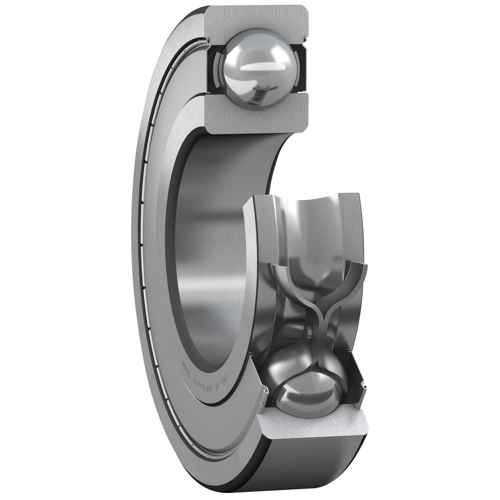

Ball Bearing 10X28X8 Skf

Qty:

Add to cart

Add to cart

• Info
• Stock status

  Product IDSKF16100-2Z

  Manufacturer

  Characteristics

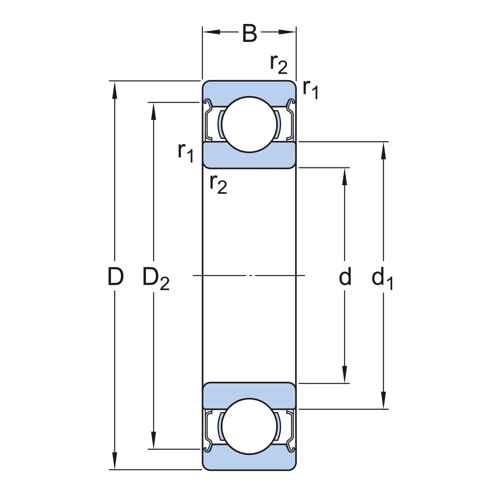

  Dimensions:
  - bore diameter (d) 10 mm
  - outer diameter (D) 28 mm
  - width (B) 8 mm
  - inner ring shoulder diameter (d1) 17 mm
  - diameter for the opening of the outer ring shoulder (D2) 24.72 mm
  - outer ring chamfer (r1,2) min. 0.3 mm

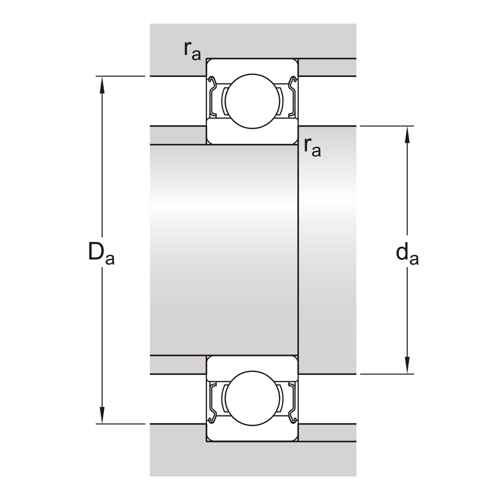

  Mounting dimensions:
  - shaft bore diameter (da) min. 14.2 mm
  - shaft bore diameter (da) max. 16.6 mm
  - housing bore diameter (Da) max. 23.8 mm
  - fillet radius (ra) max. 0.3 mm

  Calculated data:
  - dynamic load rating (C) 5.07 kN
  - static load rating (C0) 2.36 kN
  - fatigue load limit (Pu) 0.1 kN
  - reference speed 60000 r/min
  - limiting speed 30000 r/min
  - calculation factor (kr) 0.025
  - calculation factor (f0) 13.1
