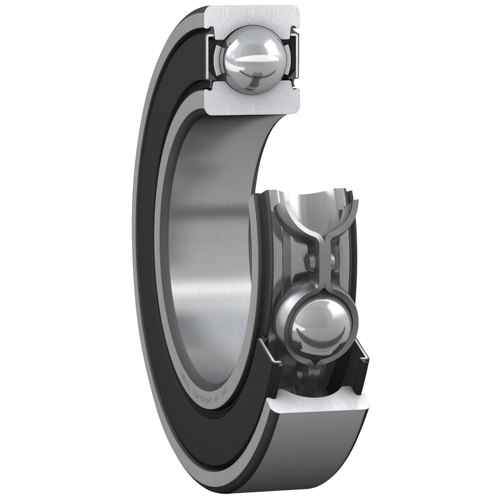

Ball Bearing 10X26X8 Skf

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDSKF6000-2RSHC3

  Manufacturer

  Characteristics

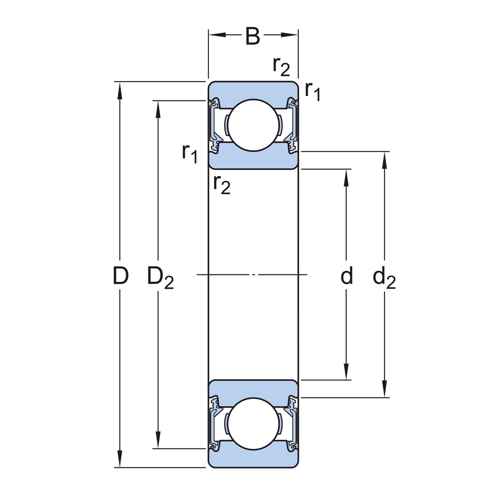

  Dimensions:
  - bore diameter (d) 10 mm
  - outer diameter (D) 26 mm
  - width (B) 8 mm
  - diameter for inner ring shoulder clearance (largest side face) (d2) 12.55 mm
  - diameter for outer ring shoulder clearance (D2) 22.6 mm
  - outer ring fillet radius (r1,2) min. 0.3 mm

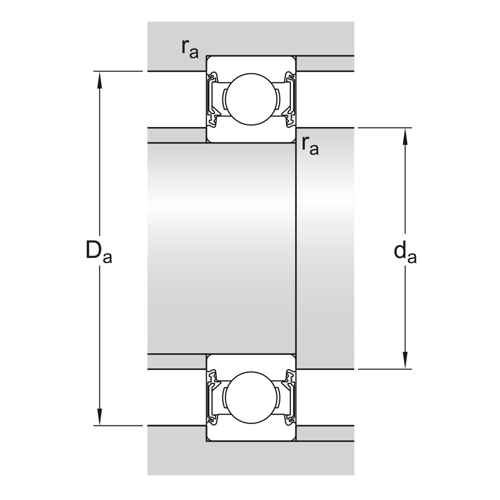

  Installation dimensions:
  - shaft bore diameter (da) min. 12 mm
  - shaft bore diameter (da) max. 12.5 mm
  - housing bore diameter (Da) max. 24 mm
  - chamfer dimension (ra) max. 0.3 mm

  Calculated data:
  - dynamic load rating (C) 4.75 kN
  - static load rating (C0) 1.96 kN
  - fatigue load limit (Pu) 0.083 kN
  - limiting speed 19000 r/min
  - calculation factor (kr) 0.025
  - calculation factor (f0) 12
