Ball bearing 10X19X5 Skf

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDSKF61800-2RS1

  Manufacturer

  Characteristics

  Dimensions:
  - bore diameter (d) 10 mm
  - outside diameter (D) 19 mm
  - width (B) 5 mm
  - diameter for snap ring groove (D2) 17.15 mm
  - outer ring chamfer dimension (r1,2) min. 0.3 mm

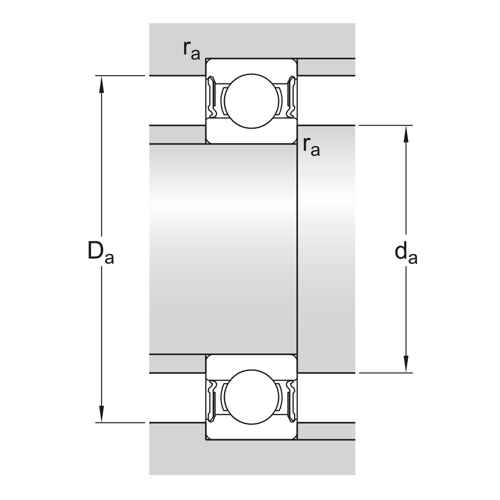

  Mounting dimensions:
  - shaft minimum seating diameter (da) 11.8 mm
  - shaft maximum seating diameter (da) 11.8 mm
  - housing maximum seating diameter (Da) 17 mm
  - fillet radius (ra) max. 0.3 mm

  Calculated data:
  - dynamic load rating (C) 1.72 kN
  - static load rating (C0) 0.83 kN
  - fatigue load limit (Pu) 0.036 kN
  - limiting speed 22000 r/min
  - calculation factor (kr) 0.015
  - calculation factor (f0) 14.8
