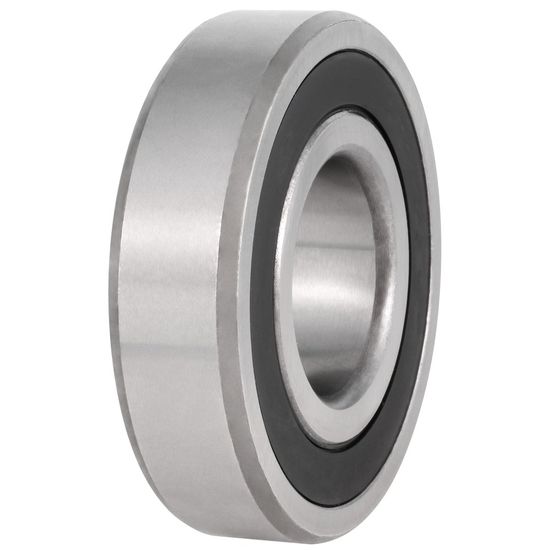

Angular contact ball bearing 60X130X31

• Info
• Stock status

  Product IDL6312-2RS

  Manufacturer

  Characteristics

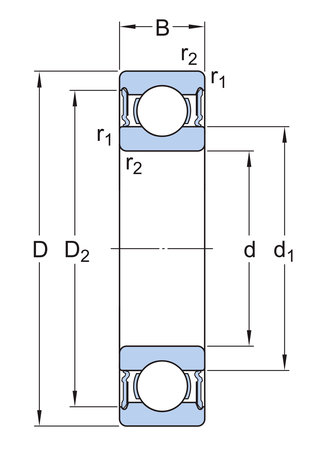

  Dimensions:
  - bore diameter (d) 60 mm
  - outer diameter (D) 130 mm
  - width (B) 31 mm
  - inner ring shoulder diameter (d1) 81.86 mm
  - diameter for clearance of outer ring shoulder (D2) 112.2 mm
  - outer ring chamfer (r1.2) min. 2.1 mm

  Installation dimensions:
  - shaft fitting diameter (da) min. 72 mm
  - shaft fitting diameter (da) max. 81.8 mm
  - housing fitting diameter (Da) max. 118 mm
  - chamfer max. 2 mm

  Calculated data:
  - dynamic load rating (C) 85.2 kN
  - static load rating (C0) 52 kN
  - fatigue load limit (Pu) 2.2 kN
  - limiting speed 3400 r/min
  - calculation factor (kr) 0.03
  - calculation factor (f0) 13.1
