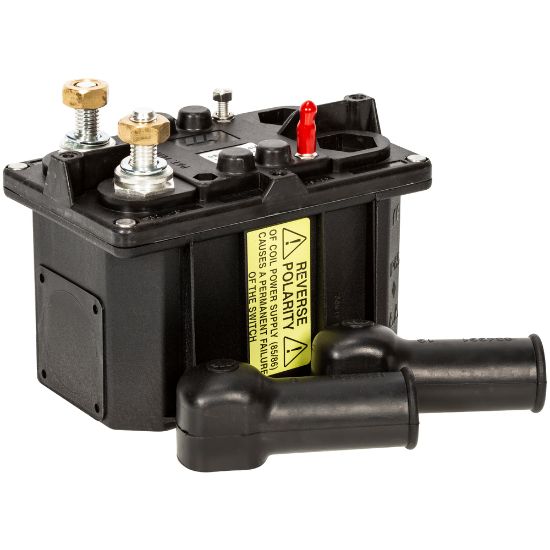

Electronic Main Power Switch 24V Pos Or Neg

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDST0094-24

  Manufacturer

  Characteristics

  - 24V
  - max. 250 A / 2500 A (3 sec.)
  - operating temperature -30 - +60
  - IP65
  - 4 mounting holes for screws 8.5mm
  - distance between mounting holes 60 x 95 mm
  - dimensions 144 x 95 x 98.5mm

  The main switch breaks either POS or NEG

  Marking of the poles
  - 30A Positive from battery M10
  - 31A Negative from battery M10
  - 30 Positive M10
  - 31 Negative M10
  - 86 Control power positive M5
  - 85 Control power negative (ground) M5

  NOTE. Check the connections of the control power, the switch will be damaged if improperly connected
