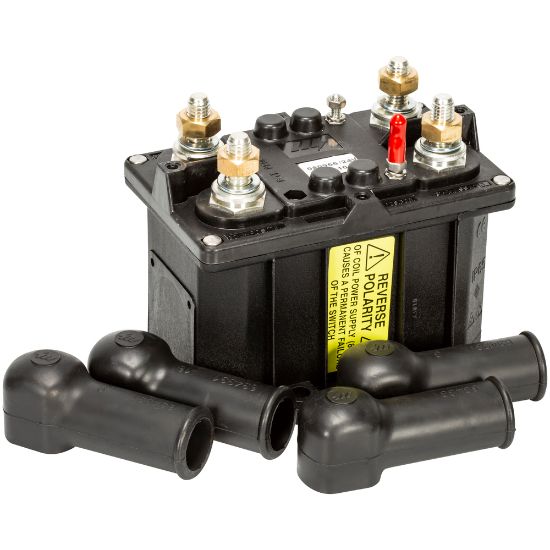

Electronic Main Power Switch 24V Pos And Neg

• Info
• Stock status

  Product IDST0095-24

  Manufacturer

  Characteristics

  - 24V
  - max. 250 A / 2500 A (3 sec.)
  - operating temperature -30...+60 °C
  - protection class IP65
  - 4 mounting holes 8.5 mm
  - distance between mounting holes 60 x 95 mm
  - dimensions 144 x 95 x 98.5mm

  The main switch breaks both POS and NEG

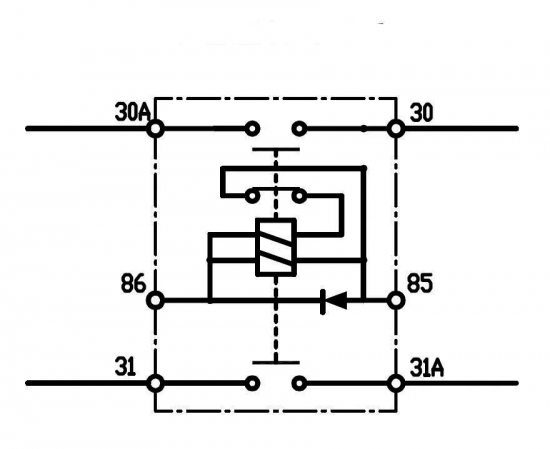

  Poles marking
  - 30A Positive from battery M10
  - 31A Negative from battery M10
  - 30 Positive M10
  - 31 Negative M10
  - 86 Control power positive M5
  - 85 Control power negative (ground) M5

  NOTE: Check the connection of the control power, the switch will break if improperly connected
