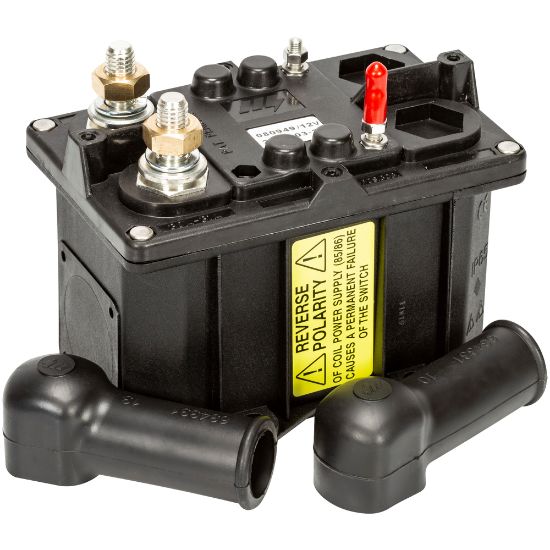

Electronic Main Power Switch 12V Pos or Neg

• Info
• Stock status

  Product IDST0094-12

  Manufacturer

  Characteristics

  - 12V
  - max. 250 A / 2500 A (3 sec.)
  - operating temperature -30...+60 °C
  - protection class IP65
  - 4 mounting holes 8.5 mm
  - distance between mounting holes 60 x 95 mm
  - dimensions 144 x 95 x 98.5mm

  The main switch breaks either POS or NEG

  Marking of the poles:
  - 30A Positive from battery M10
  - 31A Negative from battery M10
  - 30 Positive M10
  - 31 Negative M10
  - 86 Control power positive M5
  - 85 Control power negative (ground) M5

  NOTE. Check the connections of the control power, the switch will be damaged if misconnected
