TERMINAL CRIMPER SET 11 PIECES

• Info
• Stock status

  Product IDIKH6327

  Manufacturer

  Characteristics

  - heads are easily and quickly exchanged without tools
  - adjustable pressing force
  - the pliers can be used with both right and left hand
  - material: carbon steel

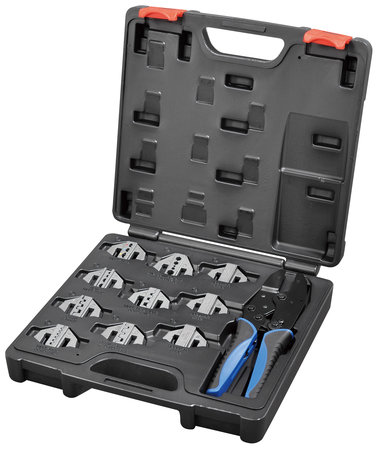

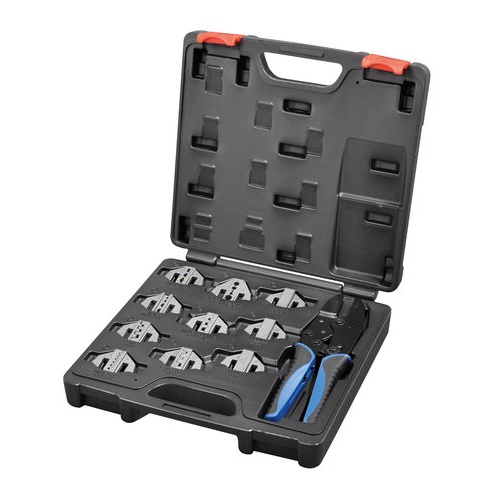

  The set includes:
  - 1 pc crimping pliers 220 mm
  - 10 pcs interchangeable ends
  - 1 pc plastic storage box

  Head A - insulated cable lug
  - AWG 22-18 / 16-14 / 12-10
  - DIN 0.5-1.0 / 1.5-2.5 / 4-6 mm²

  Side B - non-insulated cable lug
  - AWG 20-18 / 16-14 / 12-10 / 8
  - DIN 1.5 / 2.5 / 6 / 10 mm²
  - JIS 1.25 / 2 / 5.5 / 8 mm²

  Head C - open cable lug
  - AWG 20-18 / 16-14 / 12-10
  - DIN 0.5-1.0 / 1.5-2.5 / 4-6 mm²

  Head D - insulated wire end sleeve (small AWG)
  - AWG 22 / 20 / 18 / 16 / 14 / 12
  - DIN 0.5 / 0.75 / 1.0 / 1.5 / 2.5 / 4 mm²

  Head E - connection for coaxial cable of RG type (BNC)
  - 0.255" / 0.213" / 0.100" / 0.068" / 0.324"
  - 6.48 / 5.41 / 2.54 / 1.72 / 8.23 mm
  - RG 58 / 59 / 62 / 6

  Head F - insulated wire end sleeve (large AWG)
  - AWG 10 / 8 / 6
  - DIN 6 / 10 / 16 mm²

  Head H - open cable lug & D-sub, V3.5
  - AWG 14 / 22 / 8-6
  - DIN 2.5 / 0.5 / 8-10 mm²

  Head G1 - 4P4C cable lug
  - 4P4C / RJ22 socket

  Head G2 - 6P6C cable lug
  - 6P2C / 6P4C / RJ11 socket
  - 6P6C / RJ12 socket

  Head G3 - 8P8C cable lug
  - 8P8C / RJ45 socket

  5 years warranty
