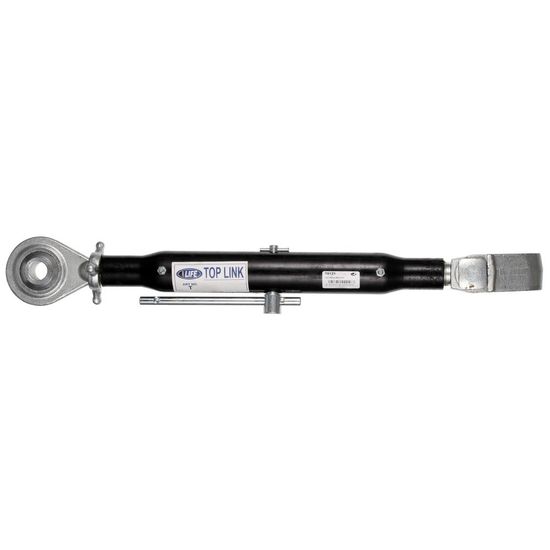

Top Link M36X3 2-3 675-

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDT0121

  ManufacturerAGRILIFE

  CharacteristicsCAT 2 (25.4 mm) / CAT 3 (31.8 mm)
  Adjustment range 675 - 920 mm

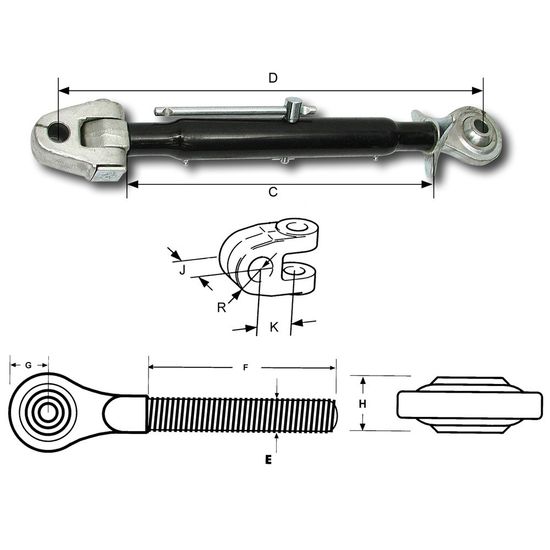

  - main: CAT 3 (31.8 mm), articulated head: CAT 2 (25.4 mm)
  - adjustment (C): min. 645 mm, max. 920 mm
  - frame length (D): 460 mm
  - thread (E): M36x3
  - F: 175 mm
  - G: 48 mm
  - H: 50 mm
  - J: 51 mm
  - K: 63 mm
  - radius R: 32 mm
  - weight: 11 kg
