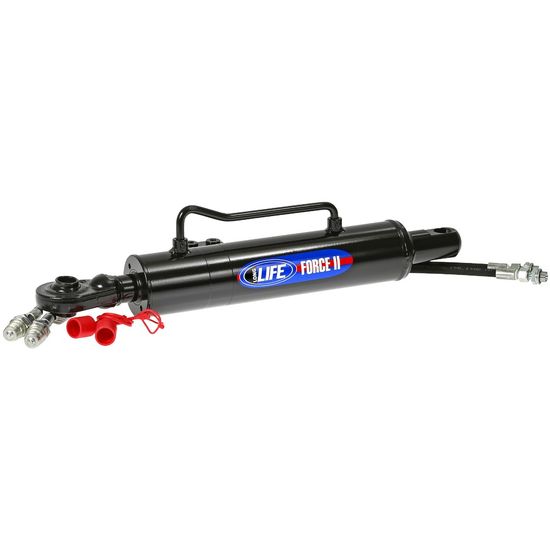

Hydraulic Top Link 80x40x606-918 Std Cat2

Qty:

Add to cart

LĂ€gg i kundvagnen

• Info
• Stock status

  Product IDT1628

  ManufacturerAGRILIFE

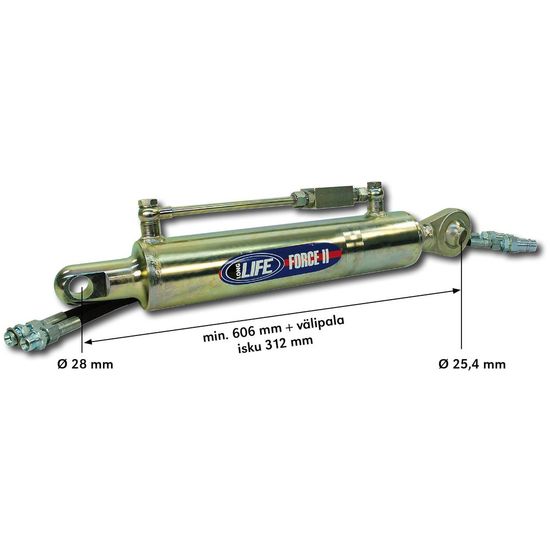

  CharacteristicsInstallation measurements min 606 mm - max 918 mm
  Stroke length 312 mm


  Technical specifications:
  - piston 80 mm
  - rod 40 mm
  - installation dimensions min 606 mm - max 918 mm
  - stroke length 312 mm
  - pressure force 8100 kg, tensile force 6000 kg (from the cylinder end)
  - joint head not included
