Hydraulic Top Link 63x35x526-749 Std Cat2

Qty:

Add to cart

LĂ€gg i kundvagnen

• Info
• Stock status

  Product IDT1620

  ManufacturerAGRILIFE

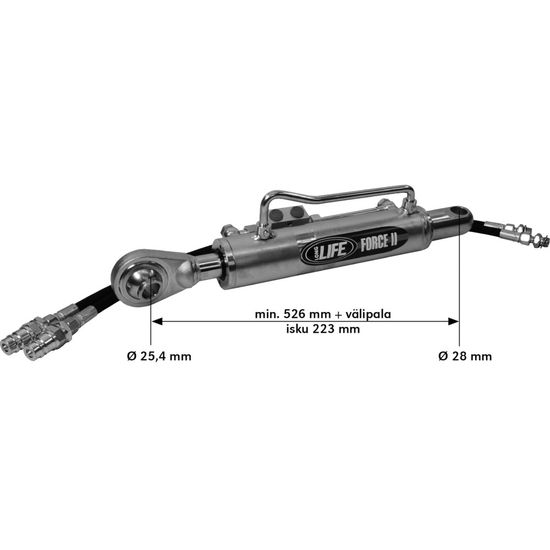

  CharacteristicsInstallation measurements min 526 mm - max 749 mm
  Stroke length 223 mm

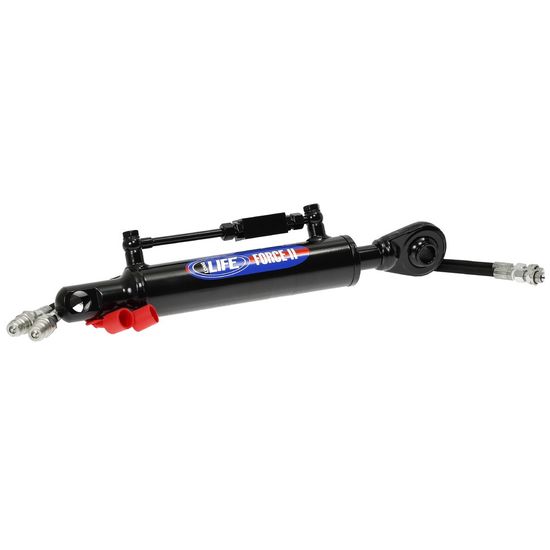

  Hydraulic top link from the brand Long Life. The pressure link is in standard design for cat 2 (25.4 mm).

  Technical specification:
  - piston 63 mm
  - rod 35 mm
  - installation dimensions min 526 mm - max 749 mm
  - stroke length 223 mm
  - pressure force 5400 kg, pulling force 3700 kg (from the end of the cylinder)
  - joint head not included
