Hydraulic Top Link 105x35-505-960 Catch Hook Cat2

Qty:

Add to cart

LĂ€gg i kundvagnen

• Info
• Stock status

  Product IDT1631

  Manufacturer

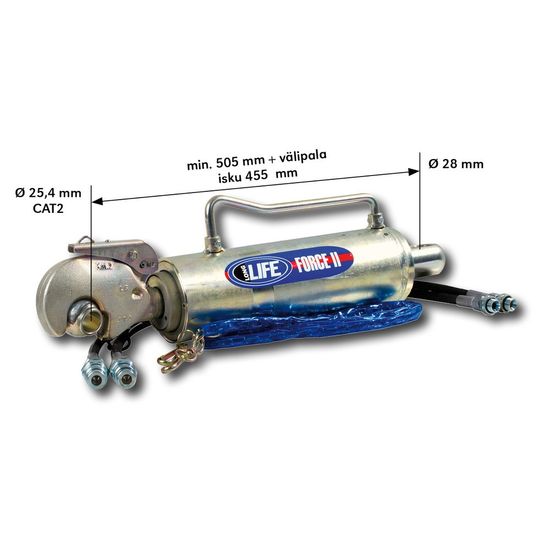

  CharacteristicsInstallation measurements min 505 mm - max 960 mm
  Stroke length 455 mm

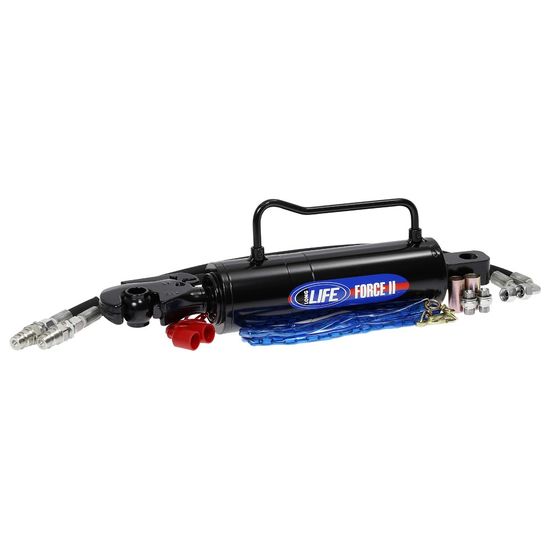

  Hydraulic pressure rod with extra long stroke length and two moving pipes. The top rod is with a catch hook in cat 2 (25.4 mm).

  Technical specification:
  - pipes 75 mm and 35 mm
  - installation dimensions min 505 mm - max 960 mm
  - stroke length 455 mm
  - driving force with 75mm pipe 12000 kg, pulling force 3600 kg
  - driving force with 35mm pipe 5900 kg, pulling force 3800 kg
  - joint head not included

  Accessories:
  - T0118 joint head with pin JD 20.2 mm
  - T0116 joint head with pin CAT2 25.4 mm
  - T0119 joint head with pin NH 28.2 mm
  - T0117 joint head with pin CAT3 32.3 mm
  - T0118L joint head with long pin JD 20.2 mm
  - T0116L joint head with long pin CAT2 25.4 mm
  - T0119L joint head with long pin NH 28.2 mm
  - T0117L joint head with long pin CAT3 32.3 mm
