Drawbar Quick coupling Cat 1

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDT565140

  ManufacturerAGRILIFE

  CharacteristicsFor 44mm ball

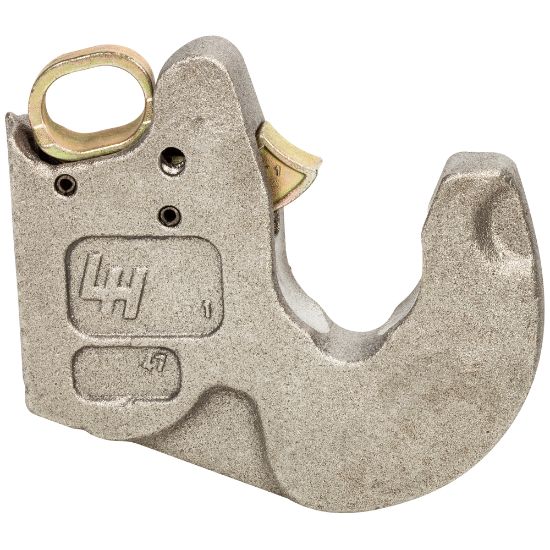

  - weldable quick coupler hook for drawbar
  - CAT 1 (22.2 mm)
  - recommended for under 100 hp tractors
  - unique patented locking mechanism allows easy and secure connection of the LH Lift quick coupler hook to the implement
  - movements and lateral forces of the implement do not open the lock, the lock is opened by lightly pulling the drawbar
  - opening mechanism and drawbar inside the hook protect them from breaking

  Please note when welding that:
  - the drawbar's plate has sufficient bevels
  - there is enough clearance between the plate and the hook
  - the welding current is sufficient (so that the base materials melt)
  - there are enough welding rods to fill the groove
  - welding can be performed with for example MAG/MAG, 1.0 mm welding wire, and Mison 8 shielding gas
