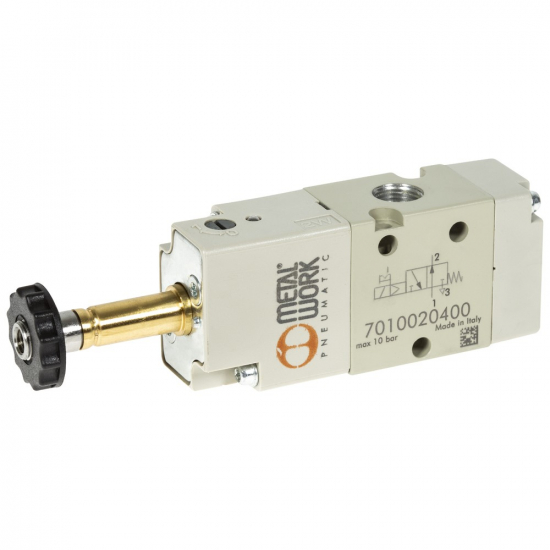

SOLENOID VALVE 3/2 1/4 NO SOL/SPRING SOV33SOSNO

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDMWP7010020400

  ManufacturerMETAL WORK

  Characteristics

  - 70 SOV series
  - power 2 W (DC) 3.5 VA (AC)
  - voltage tolerance -10...+15 %
  - insulation class F155
  - type monostable
  - size 1/8"
  - thread G 1/8" and M5
  - working pressure 2.5 - 10 bar (monostable) / 1 - 10 bar (bistable)
  - min. pilot pressure 2.5 bar
  - max. flow at 6 bar (pressure drop 0.5 bar) 400 Nl/min
  - max. flow at 6 bar (pressure drop 1.0 bar) 550 Nl/min
  - operating temperature -10...+60 °C
  - media: lubricated or unlubricated filtered compressed air

  SOV23SOSNO
  - family SOV: electrically operated
  - size 2: 1/8"

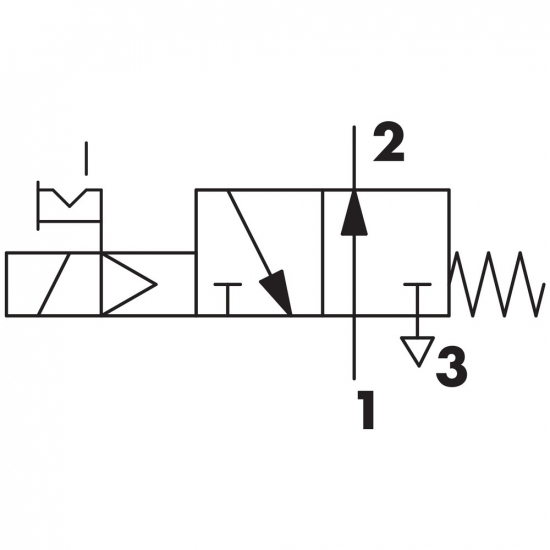

  - function 3: 3/2
  - activation 14 SO: electrically operated
  - return 12 S: mechanical spring
  - other specifications NO: normally open
