SOLENOID VALVE 3/2 1/4 NO SOL/SPRING SOV23SOSNO

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDMWP7020020400

  ManufacturerMETAL WORK

  Characteristics

  - 70 SOV series
  - power 2 W (DC) 3.5 VA (AC)
  - voltage tolerance -10...+15 %
  - insulation class F155
  - type monostable
  - size 1/4"
  - thread G 1/4"
  - working pressure 2.5 - 10 bar (monostable) / 1 - 10 bar (bistable)
  - min. pilot pressure 2.5 bar
  - max. flow at 6 bar (pressure drop 0.5 bar) 750 Nl/min
  - max. flow at 6 bar (pressure drop 1.0 bar) 1100 Nl/min
  - operating temperature -10...+60 °C
  - media: lubricated or unlubricated filtered air

  SOV33SOSNO
  - family SOV: solenoid operated
  - size 3: 1/4"

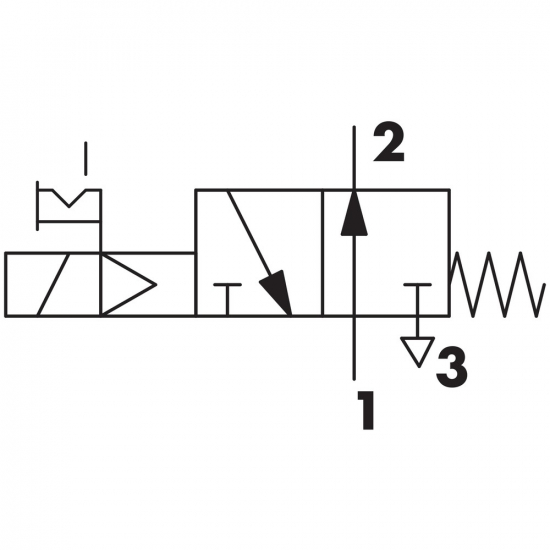

  - function 3: 3/2
  - activation 14 SO: solenoid operated
  - return 12 S: mechanical spring
  - other specifications NO: normally open
