Shuttle Valve 1/8

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDMWP3603000001

  ManufacturerMETAL WORK

  Characteristics

  - VOR series
  - spool valve combines two separate signals into a common control signal
  - material valve body aluminum, mechanical parts brass, seals NBR
  - thread G 1/8"
  - operating pressure 2 - 10 bar
  - max. flow at 6 bar (pressure drop 1.0 bar) 500 Nl/min
  - operating temperature -10...+80 °C
  - media: lubricated or non-lubricated filtered compressed air

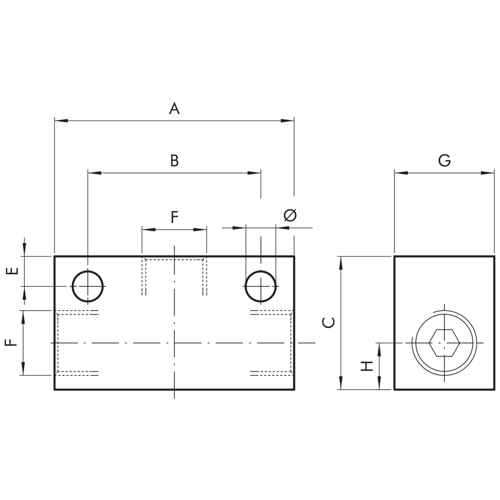

  Dimensions (mm):
  - A 36
  - C 20
  - G 15
  - H 7.5
  - E 4
  - B 25
  - F 1/8"
  - Ø 4.5
