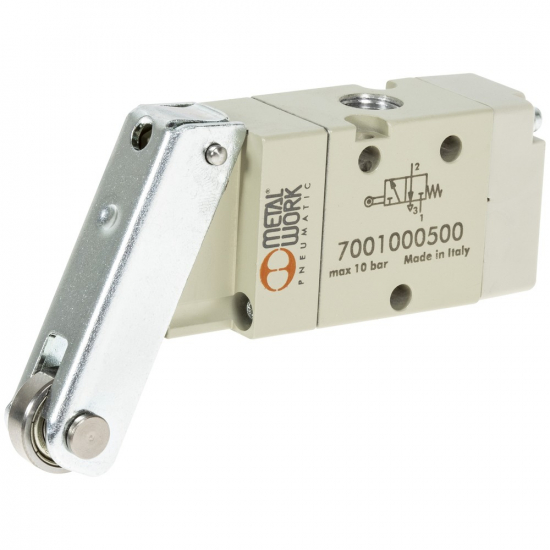

ROLLER LEVER VALVE 3/2 1/8 MEV23BRSNC

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDMWP7001000500

  ManufacturerMETAL WORK

  Characteristics

  - 70 MEV series
  - material valve body aluminum, coil nickel-plated aluminum, seals NBR
  - thread G 1/8"
  - working pressure 0 - 10 bar (directly operated version) / 2.5 - 10 bar (pilot-operated version)
  - max. flow at 6 bar (pressure drop 0.5 bar) 400 Nl/min
  - max. flow at 6 bar (pressure drop 1.0 bar) 550 Nl/min
  - operating temperature -10...+60 °C
  - media: lubricated or non-lubricated filtered compressed air

  MEV23BRSNC
  - family MEV: mechanically controlled valves
  - size 2: 1/8"
  - function 3: 3/2
  - actuation 14 BR: spring
  - return 12 S: mechanical spring
  - other specifications NC: normally closed
