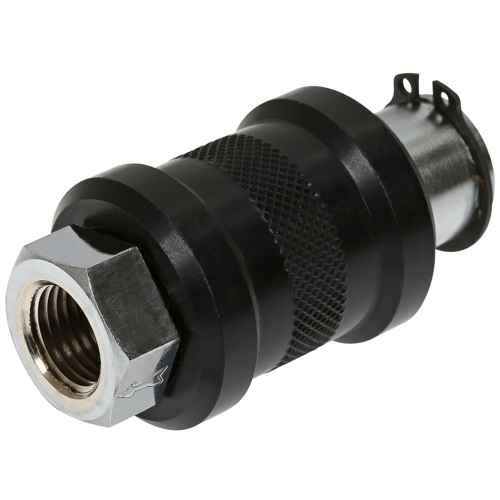

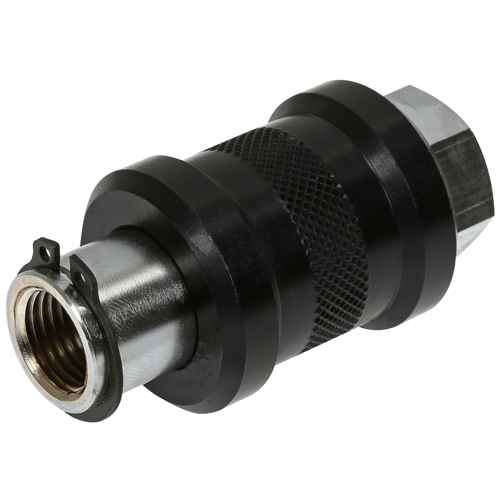

Pneumatic Valve 1/4 3/2 Vcs 3-Way

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDMWP0970050002

  ManufacturerMETAL WORK

  Characteristics

  - VCS-series
  - thread G 1/4"
  - working pressure 0 - 10 bar
  - max. flow at 6.3 bar (pressure drop 0.5 bar) 680 Nl/min
  - max. flow at 6.3 bar (pressure drop 1 bar) 1040 Nl/min
  - operating temperature -10...+80 °C
  - media: lubricated or unlubricated filtered compressed air

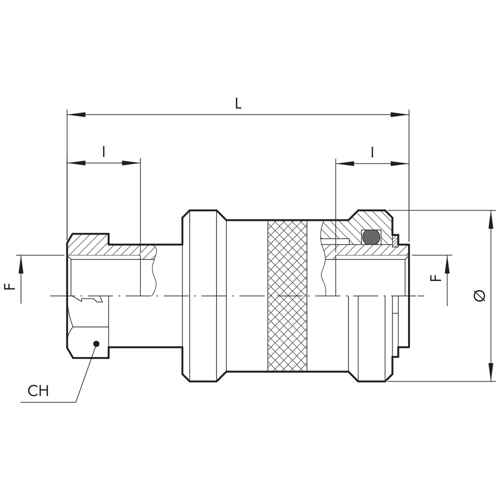

  Dimensions (mm):
  - F 1/4"
  - Ø 30
  - I 12
  - L 58
  - CH 19
