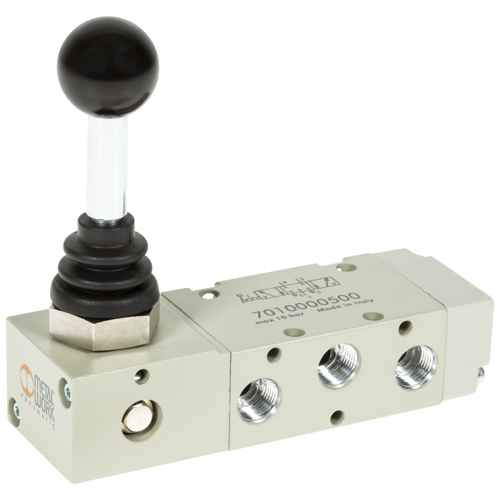

MECHANICAL VALVE 5/3 1/8 90 LEVER/LEVER MAV25LEOCC

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDMWP7010000500

  ManufacturerMETAL WORK

  Characteristics

  - 70 MAV series
  - material valve body aluminum, coil nickel-plated aluminum, seals NBR
  - thread G 1/8"
  - working pressure 2.5 - 10 bar (pilot-operated version)
  - max. flow at 6 bar (pressure drop 0.5 bar) 400 Nl/min
  - max. flow at 6 bar (pressure drop 1.0 bar) 550 Nl/min
  - operating temperature -10...+60 °C
  - media: lubricated or non-lubricated filtered compressed air

  MAV26LEOCC
  - family MAV: manual control
  - size 2: 1/8"

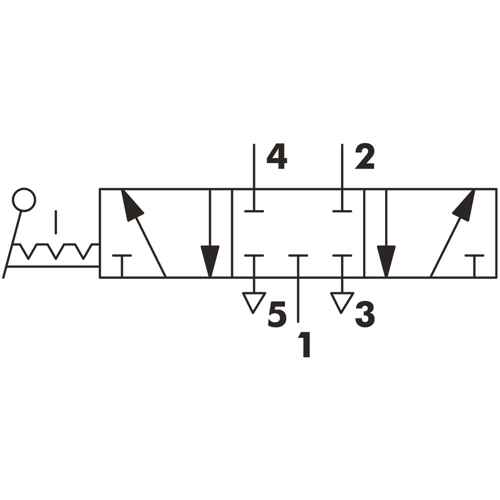

  - function 6: 5/3
  - actuation 14 LE: 90° lever
  - return 12 O: stable 5/3
  - other specifications CC: closed center
